Moton 2-Way Clubsport Coilovers - BMW M3/M4 xDrive Competition (G80/G82)

OVERVIEW

The Moton 2-Way suspension is designed for dedicated motorsport racers who want to optimize their car's performance to the highest level — primarily engineered in a race set-up and exceptionally well-suited to endurance racing. This version is tuned specifically for the xDrive all-wheel-drive G8X chassis.

Challenge your vehicle by adjusting the compression and rebound separately with a remote reservoir. Each adjustment position provides distinct feedback, delivering a unique driving sensation. Moton uses an elevated top guide with a helper piston to reduce friction, resulting in reduced internal wear and stable, consistent damping.

SPECS

• 2-way adjustable: compression and rebound, independently adjustable via remote reservoir
• Each adjustment position provides distinct feedback
• Inverted strut design engineered to handle heavy side loads and braking forces
• Monotube coilover design front and rear
• Flexibility to adjust spring rates; springs included
• Elevated top guide with helper piston to reduce friction and internal wear
• Includes external reservoirs and, where applicable, camber-adjustable front top mounts and solid rear top mounts
• Tuned specifically for xDrive (AWD) models

PARTS INCLUDED

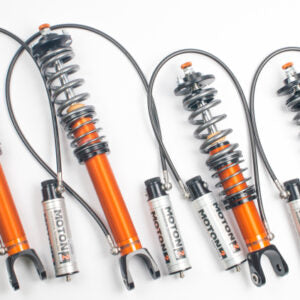

• Moton 2-way coilover struts (front and rear) with external reservoirs
• Springs
• Top mounts (camber-adjustable front / solid rear, where applicable) and hardware

TECH RESOURCES

• Required for cars with factory EDC / Adaptive M Suspension — an EDC delete kit must be ordered separately
• Fitment: xDrive (AWD) only. RWD cars use a different part number — see our 2-Way Clubsport for RWD G8X (M 505 185SD)
• Two-way adjustable damping plus ride height — a professional wheel alignment is recommended after installation
• Want separate low- and high-speed compression? See our 3-Way Motorsport for xDrive Competition. Entry tier: 1-Way xDrive (M 505 187SD)
• Pairs with our SPL Front Lower Control Arms (xDrive) and Rear Upper Arms
• Professional installation and corner-balancing recommended

PART NUMBER

• M 505 188SD
