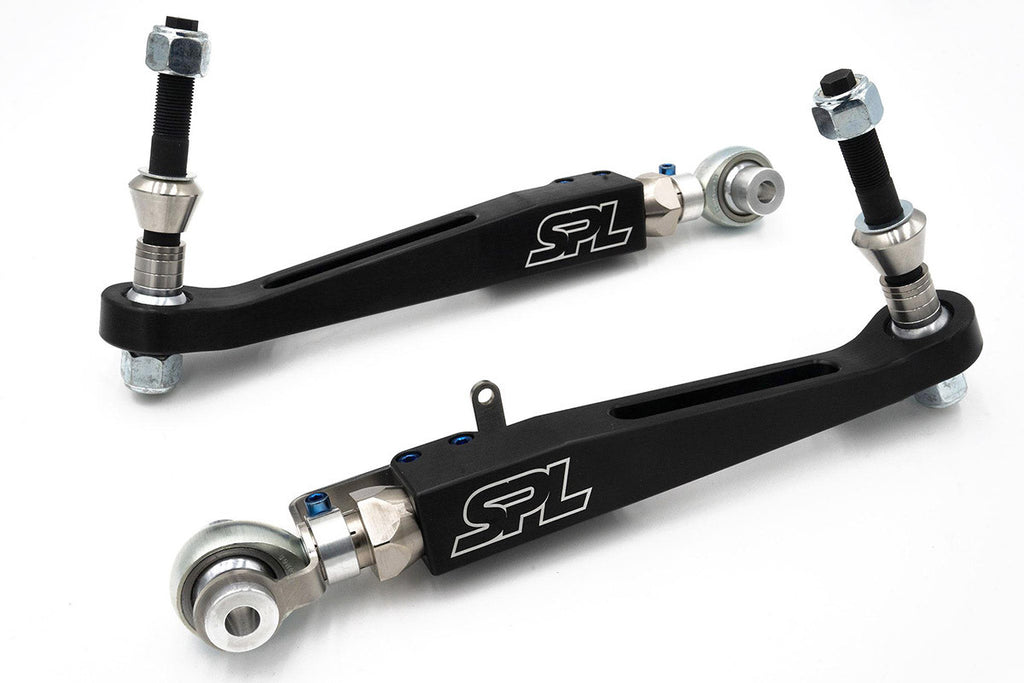

SPL Parts Front Lower Control Arms - BMW M3/M4 xDrive (G80/G82)

OVERVIEW

SPL BMW G8X Front Lower Control Arms (FLCA) provide roll-center, camber, and track-width adjustment for the AWD G8X M3/M4, with full articulation thanks to a properly corrected ball-joint angle. The main arm is slotted for pinch bolts, and SPL's exclusive rotating-clamp Double Adjuster locks down camber and track-width settings — no fumbling with multiple wrenches to hold jam nuts.

SPECS

• Lightweight 6061-T6 billet aluminum arm with titanium hardware
• Electroless nickel-plated 4130 chromoly Double Adjuster for quick, repeatable adjustment
• Correct ball-joint angle for full articulation
• Rotating-clamp design for easy access when locking down alignment settings
• Low-friction 3-piece Teflon-lined FK sphericals and rod ends
• Multiple-size stainless steel roll-center spacers included for precise adjustment
• Includes a ride-height sensor bracket to maintain the factory sensor location
• Made in the USA

PARTS INCLUDED

• Pair of SPL front lower control arms (xDrive-specific)
• Roll-center spacers, ride-height sensor bracket, and titanium hardware

TECH RESOURCES

• xDrive (AWD) only
• A professional wheel alignment is required after installation to set camber, track width, and roll center
• Installation instructions (PDF): SPL FLCA G8X IX Install Guide

PART NUMBER

• SPL FLCA G8X IX

VEHICLE APPLICATIONS
