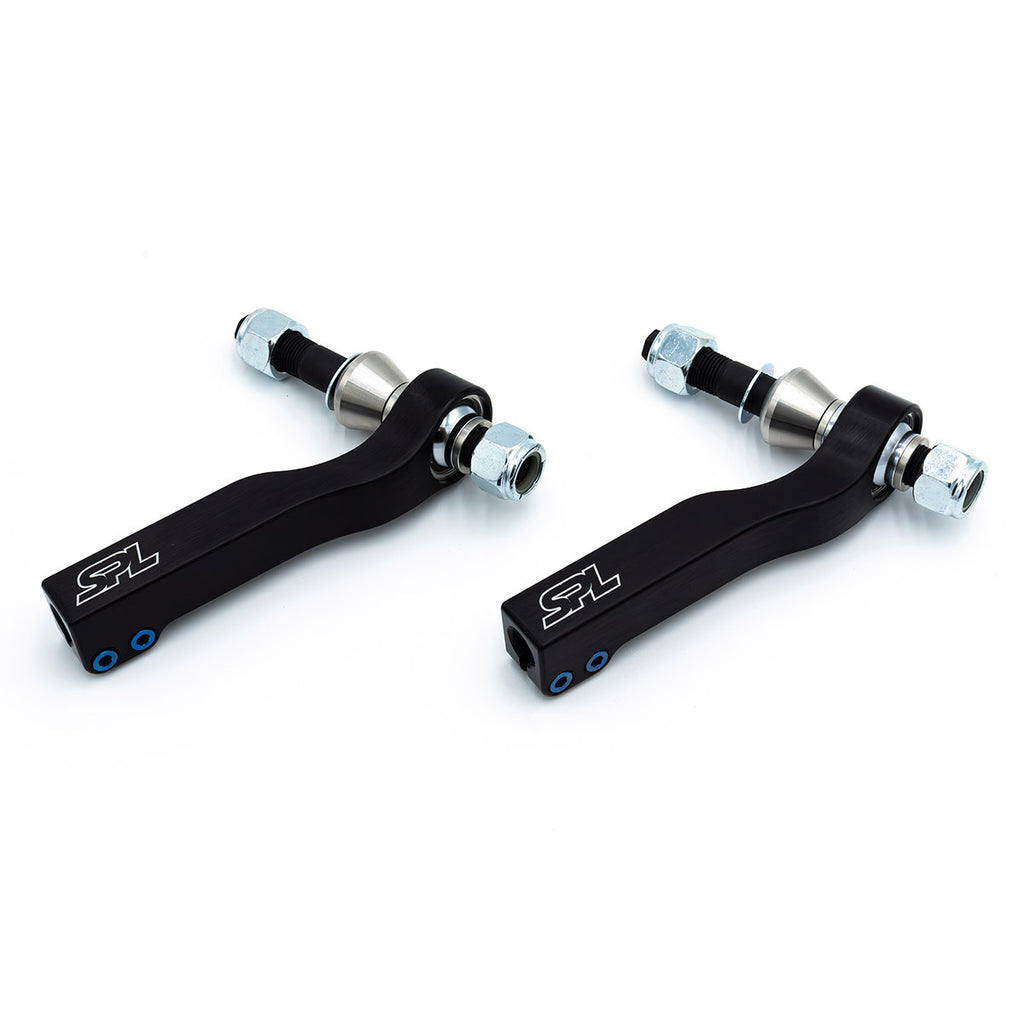

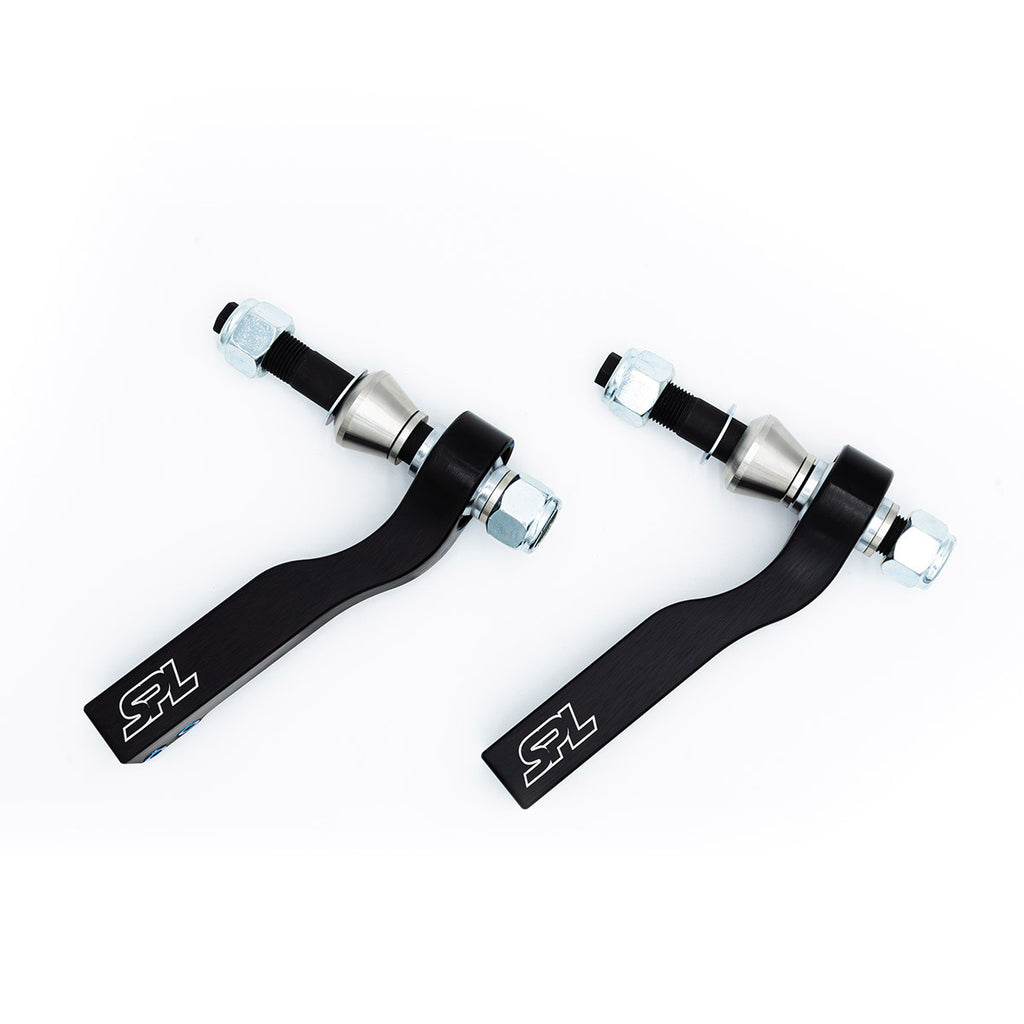

SPL Parts Bumpsteer Adjustable Tie Rod Ends - BMW G8X/G2X/G42

OVERVIEW

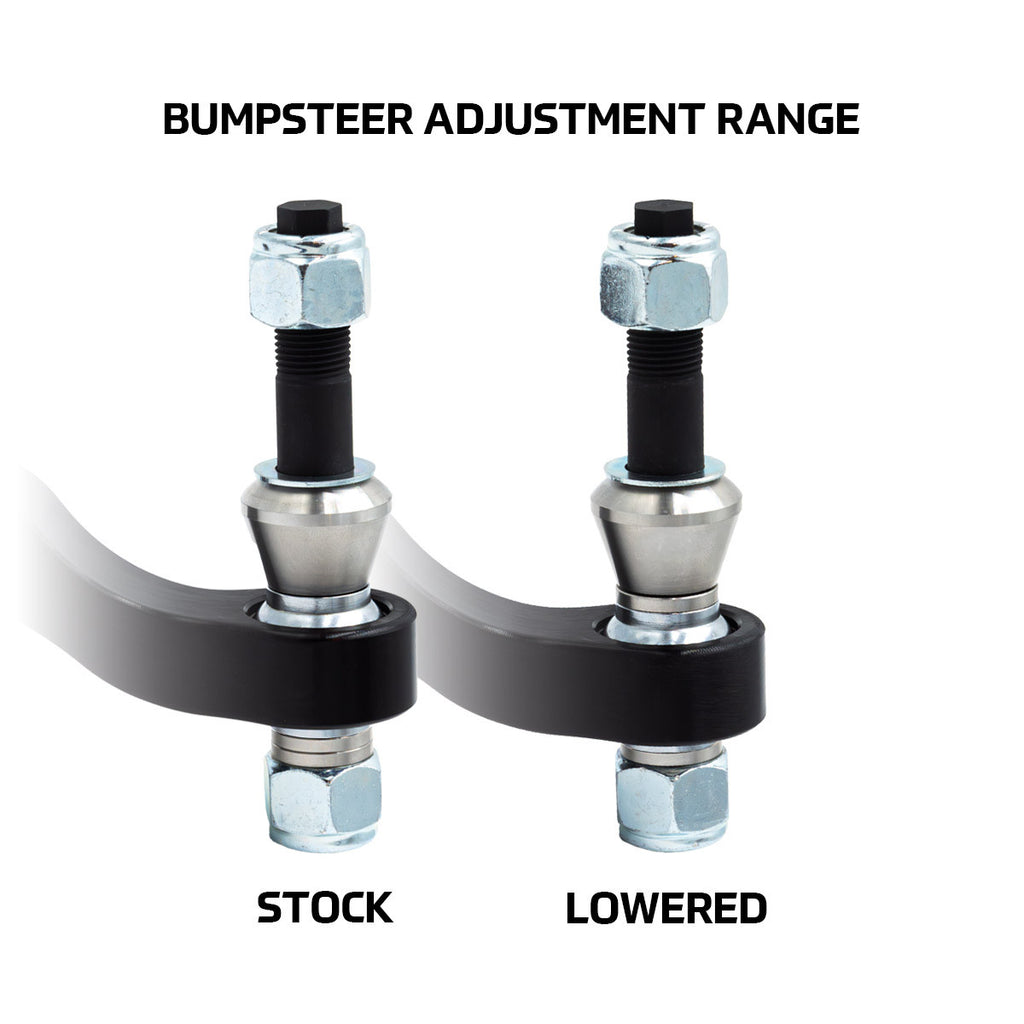

SPL Bumpsteer Adjustable Tie Rod Ends allow the tie-rod-end pivot to be relocated using spacers, correcting the bumpsteer (dynamic toe change) introduced when a car is lowered. As the suspension compresses over bumps and through corners, a corrected tie-rod pivot keeps toe more consistent — resulting in more predictable handling, less front tire shoulder wear, and better stability over rough roads and curbing.

SPECS

• Corrects bumpsteer introduced by lowering springs or coilovers
• Lightweight: 1.49 lbs (0.68 kg) per side — 3% lighter than OEM
• Improves steering feel, handling, and stability over bumps, especially while braking/turning
• Reduces front-tire toe wear on lowered cars
• Improved geometry maximizes articulation and droop travel
• 6061-T6 aluminum body, 4140 chromoly tapered stud, 304 stainless steel spacers, Ti-6Al-4V titanium hardware
• Maintenance-free, US-made, PTFE-lined FK bearings

PARTS INCLUDED

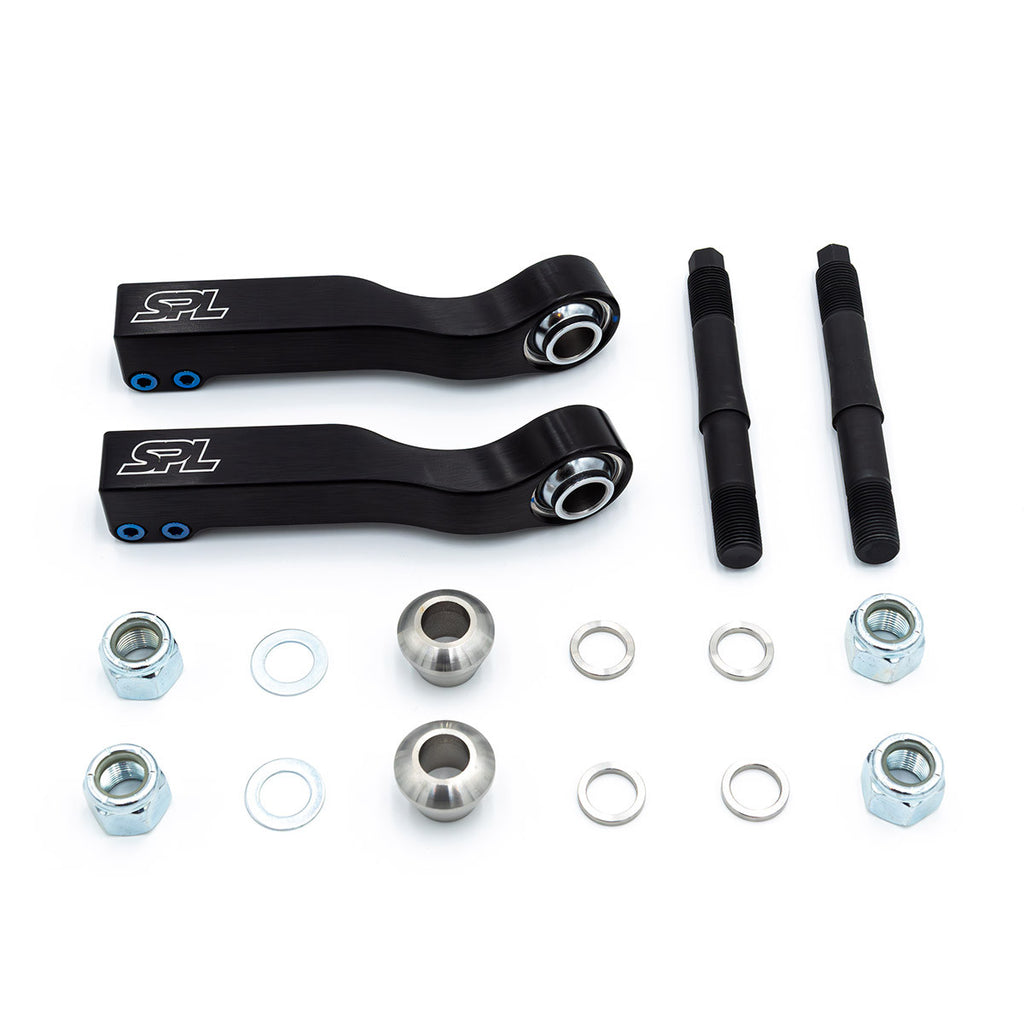

• Pair of SPL bumpsteer-adjustable tie rod ends
• Bumpsteer spacers and titanium hardware

TECH RESOURCES

• This is the 16mm tie-rod version for M-model cars (M2, M3, M4, M340i, M240i) equipped with factory Sport Adaptive Steering; non-Sport G2X/G42 trims use a 14mm tie rod and require a different part number
• A professional wheel alignment (and bumpsteer setup) is recommended after installation
• Installation instructions (PDF): SPL TRE G8X Install Guide

PART NUMBER

• SPL TRE G8X
