Black Market Race Gen 2 B58 Catch Can Kit (A90/A91 Supra and BMW G-Chassis)

OVERVIEW

Any tuned B58 will eventually suffer from excessive crankcase pressure. The Black Market Race Gen 2 B58 Catch Can routes a braided AN hose from a custom billet oil cap to the catch can, all while staying under the engine cover. This kit is ready to run and includes all fittings, hoses, and hardware needed to install.

SPECS

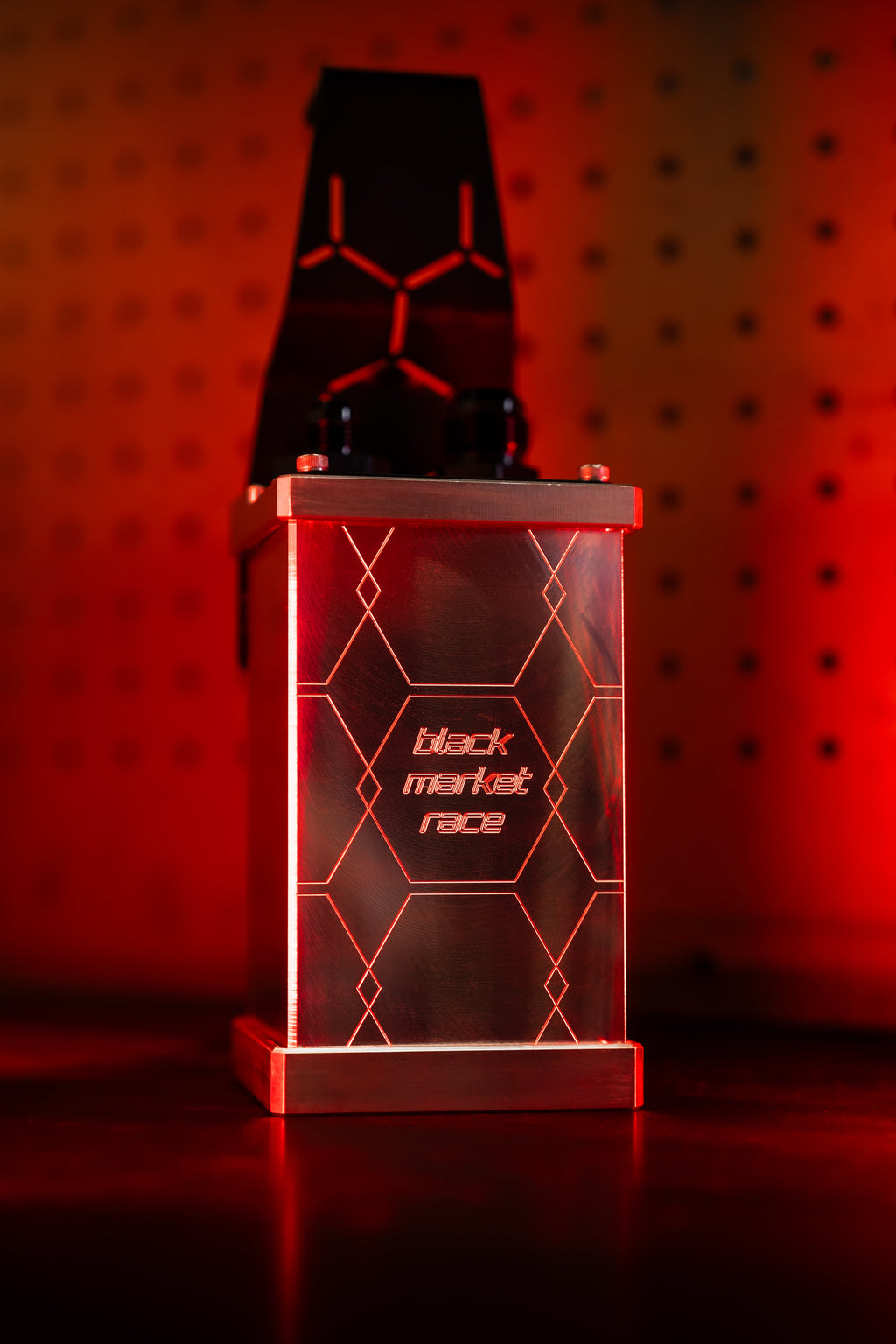

• Internally baffled and packed with stainless steel to catch oil particles before venting to atmosphere
• Includes an M12 x 1.5 drain bolt for easy service

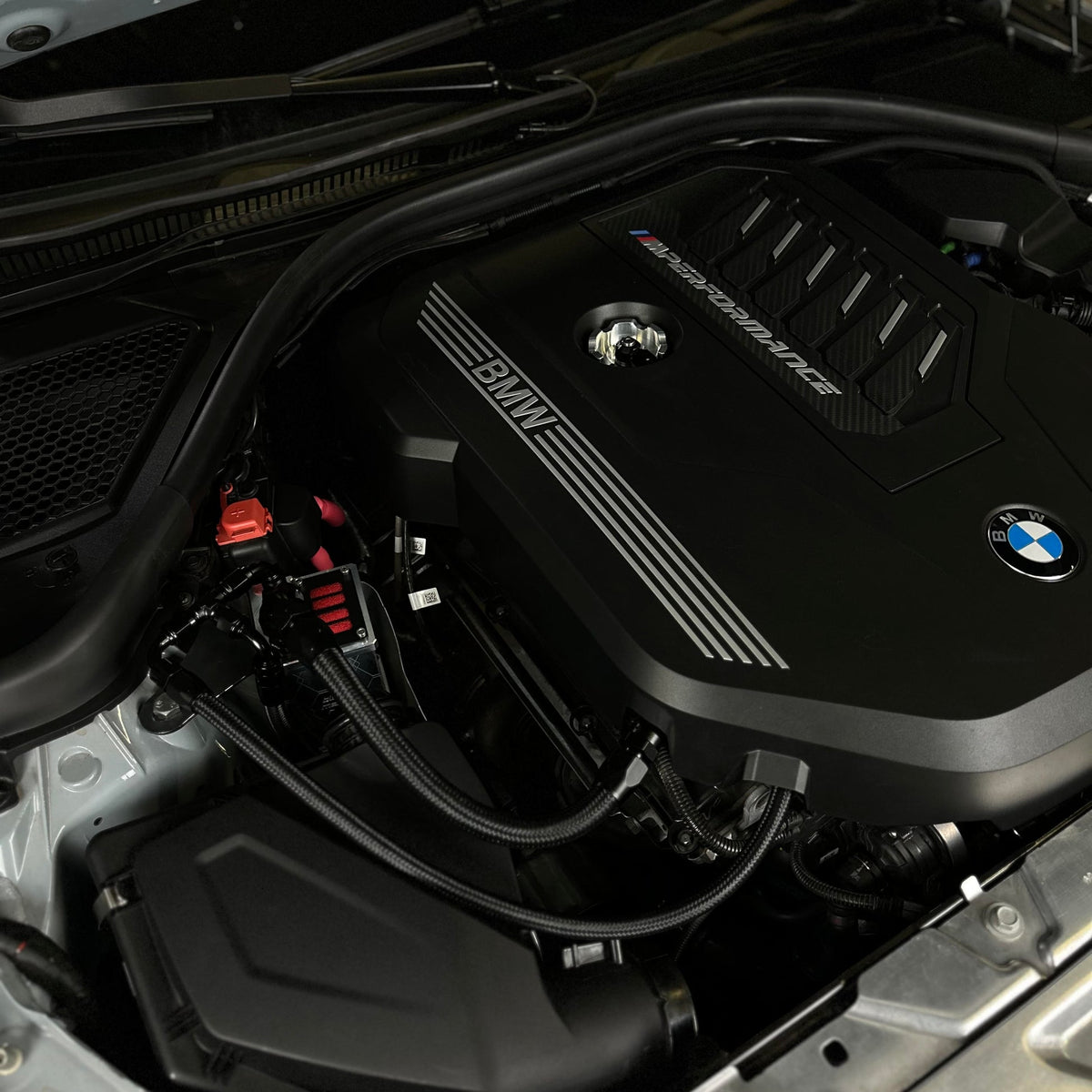

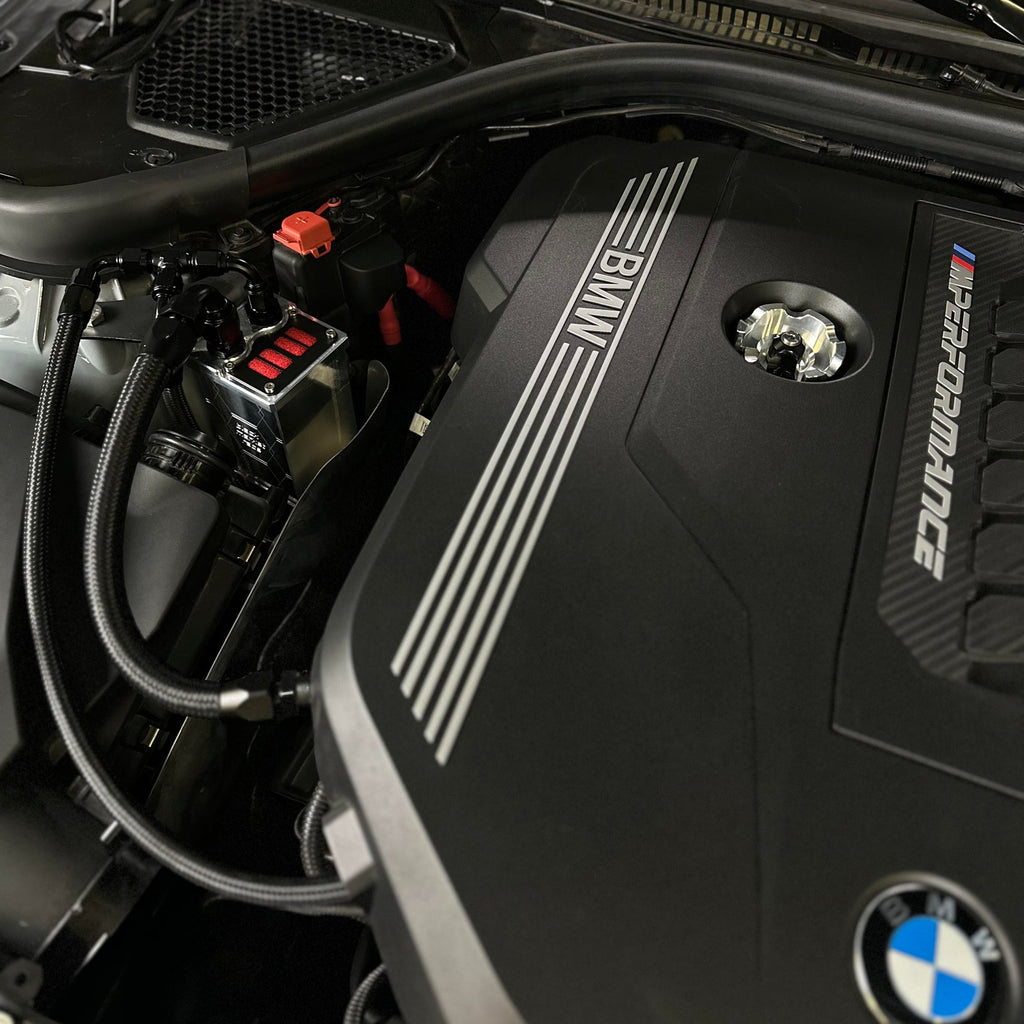

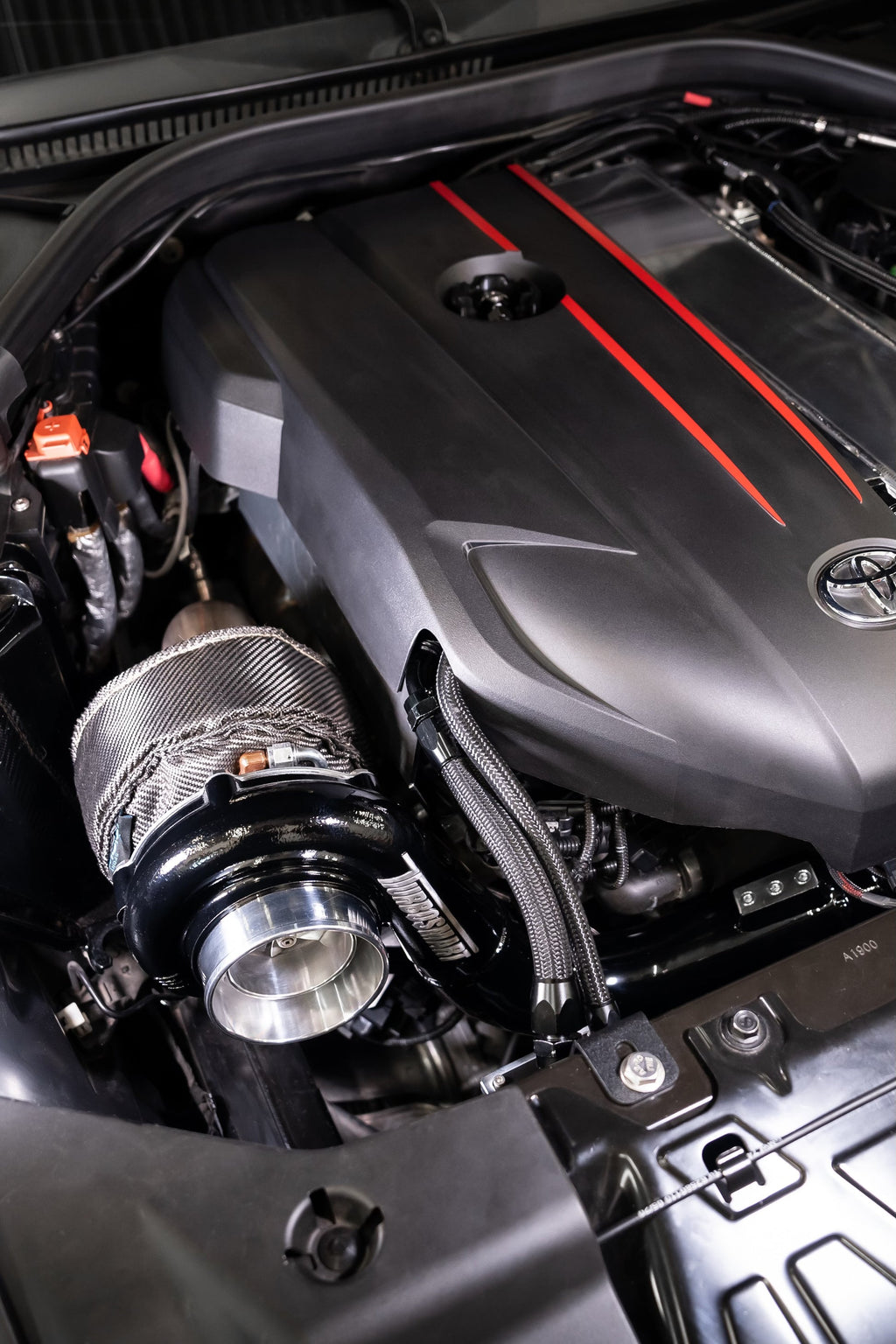

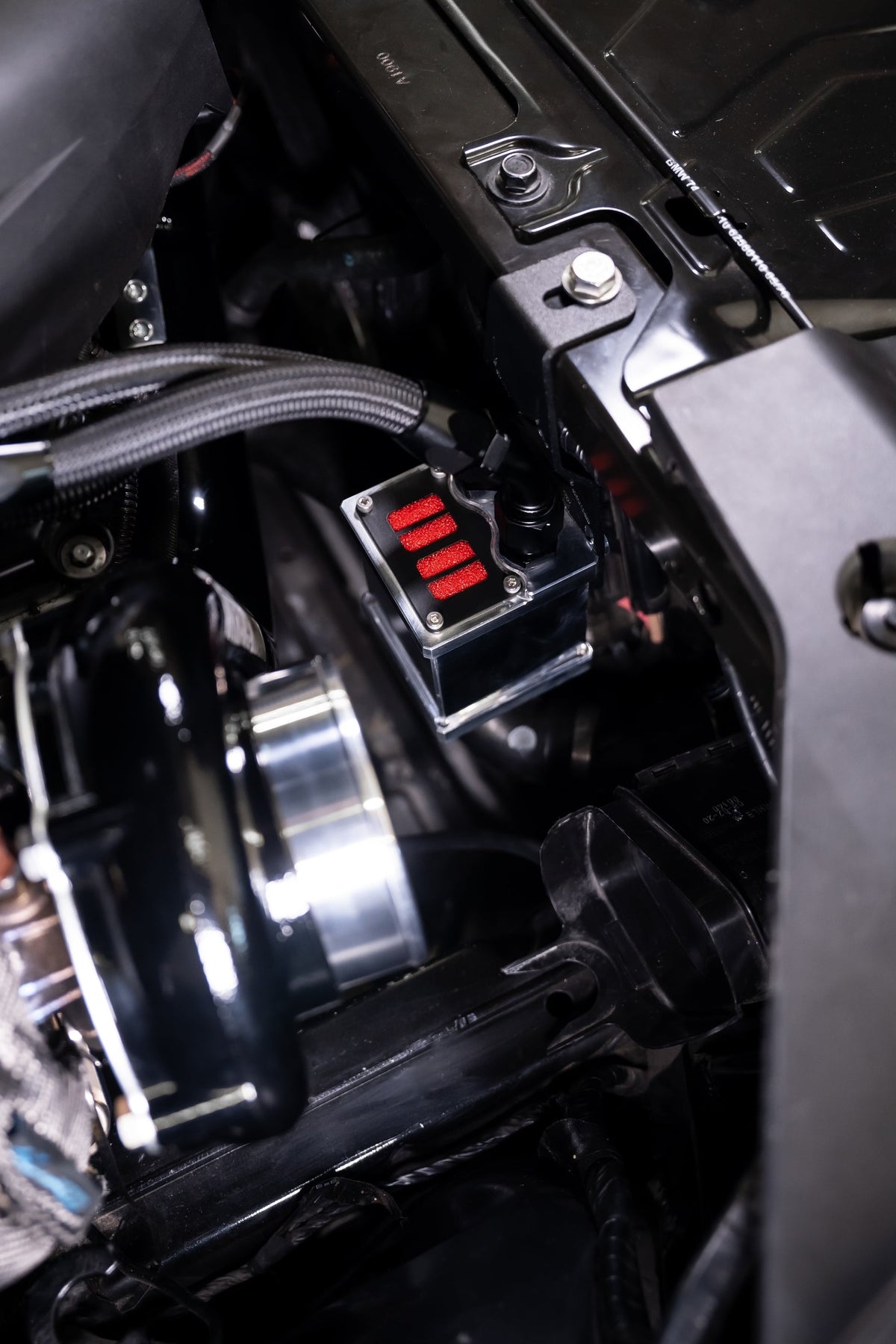

• Two mounting configurations: stock/hybrid turbo (strut tower behind airbox) or top mount turbo (below front radiator support)

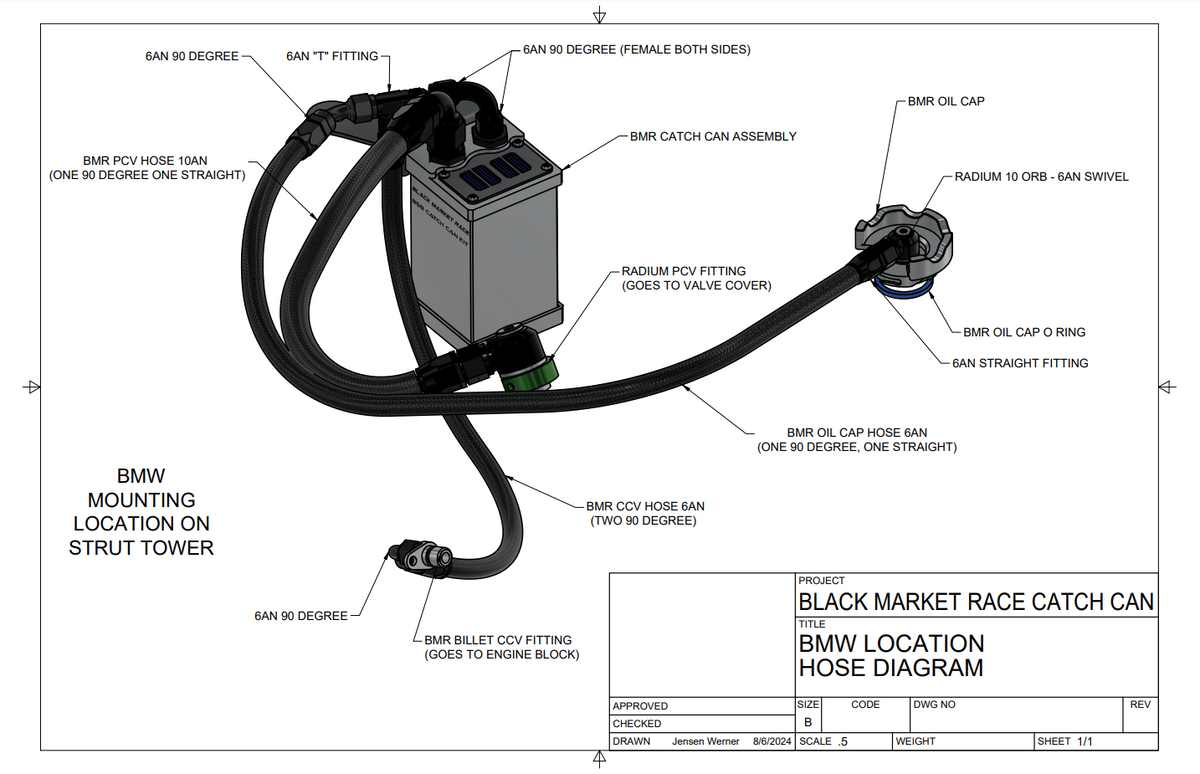

• Pre-made AN lines to vent PCV and CCV
• Optional intake silencer delete available

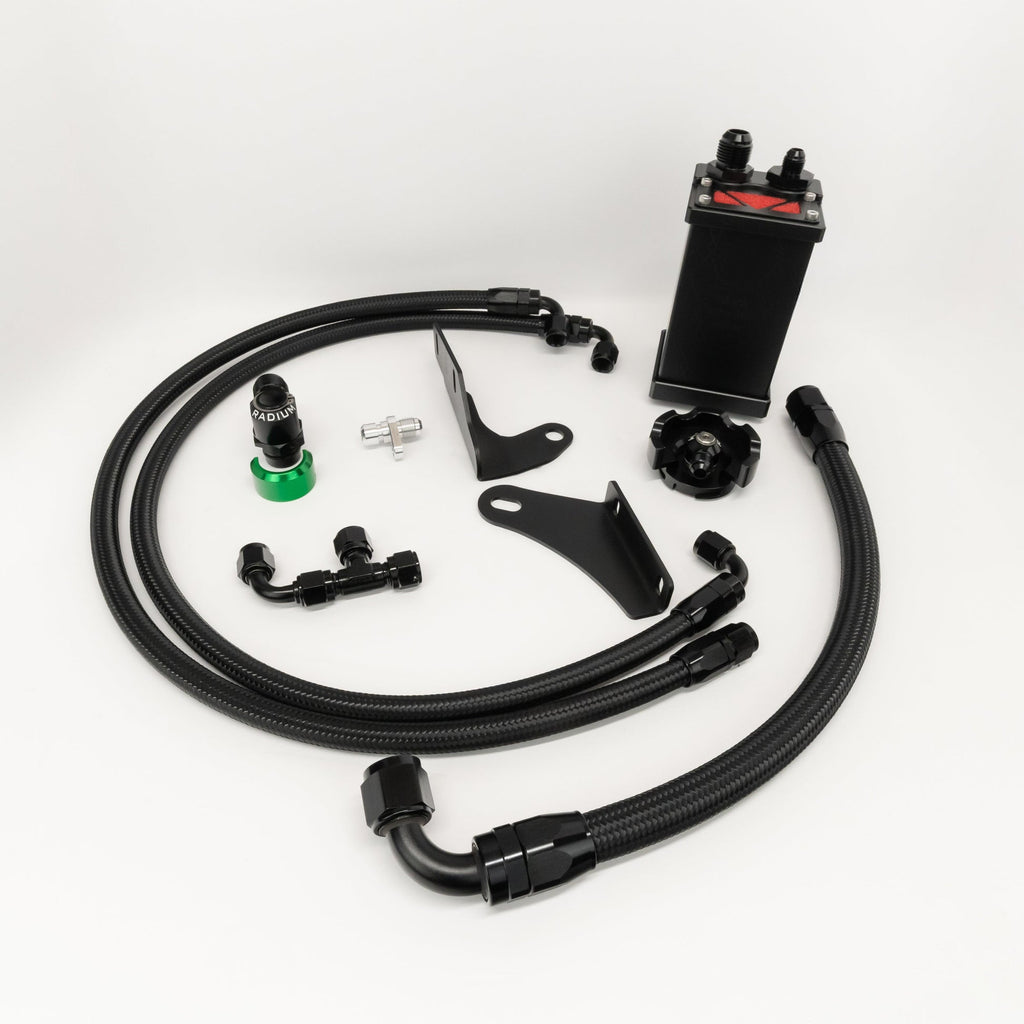

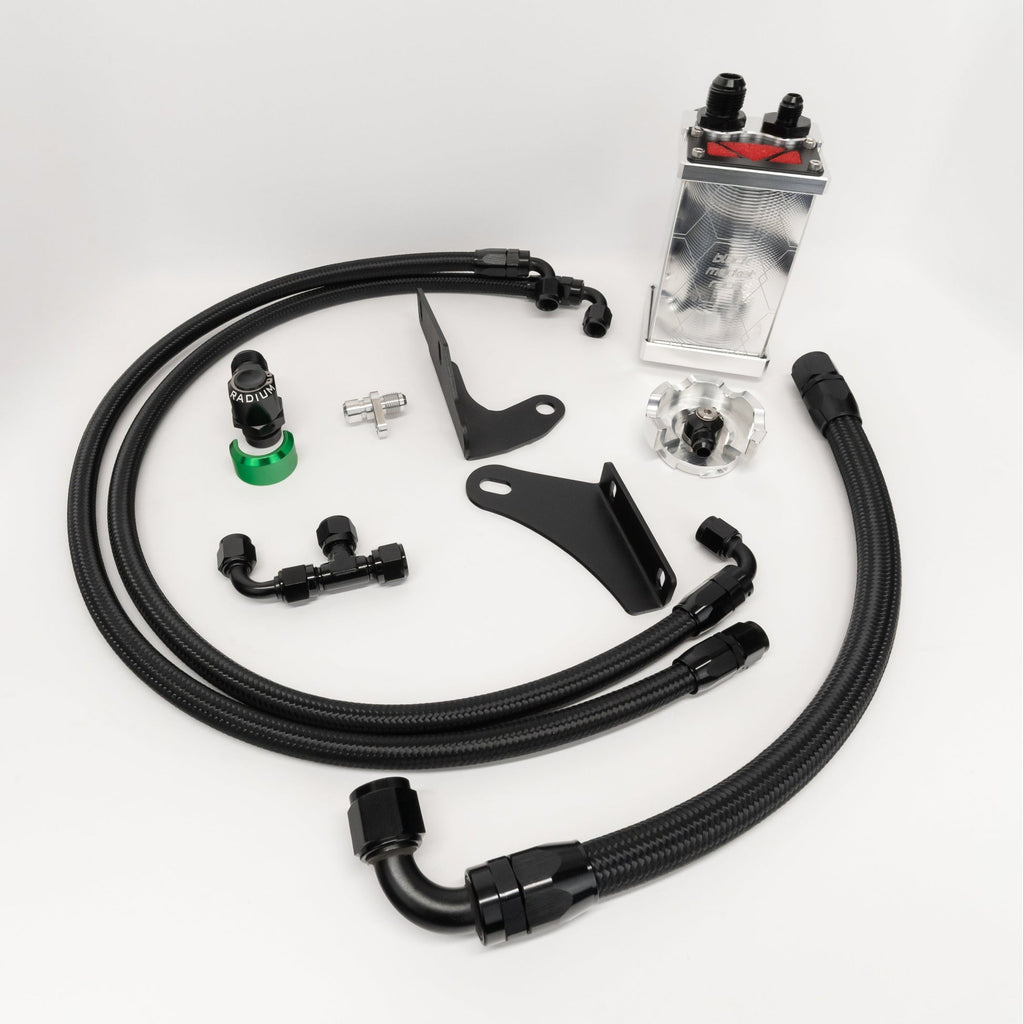

PARTS INCLUDED

• Billet catch can with drain bolt
• Billet oil cap
• Pre-made AN lines
• Mounting hardware for the selected turbo configuration

TECH RESOURCES

• For installation with the stock turbo inlet, you'll also need 2x 3/4" coolant bypass caps (not included)
• Install / overview video: BMR Gen 2 B58 Catch Can
• Current lead time is approximately 1–2 weeks to ship
• Designed and intended solely for off-road or closed-course racing use; not legal for sale or use on pollution-controlled vehicles in California
