do88 Charge Cooler Manifold – BMW B58/S58 & Toyota Supra

OVERVIEW

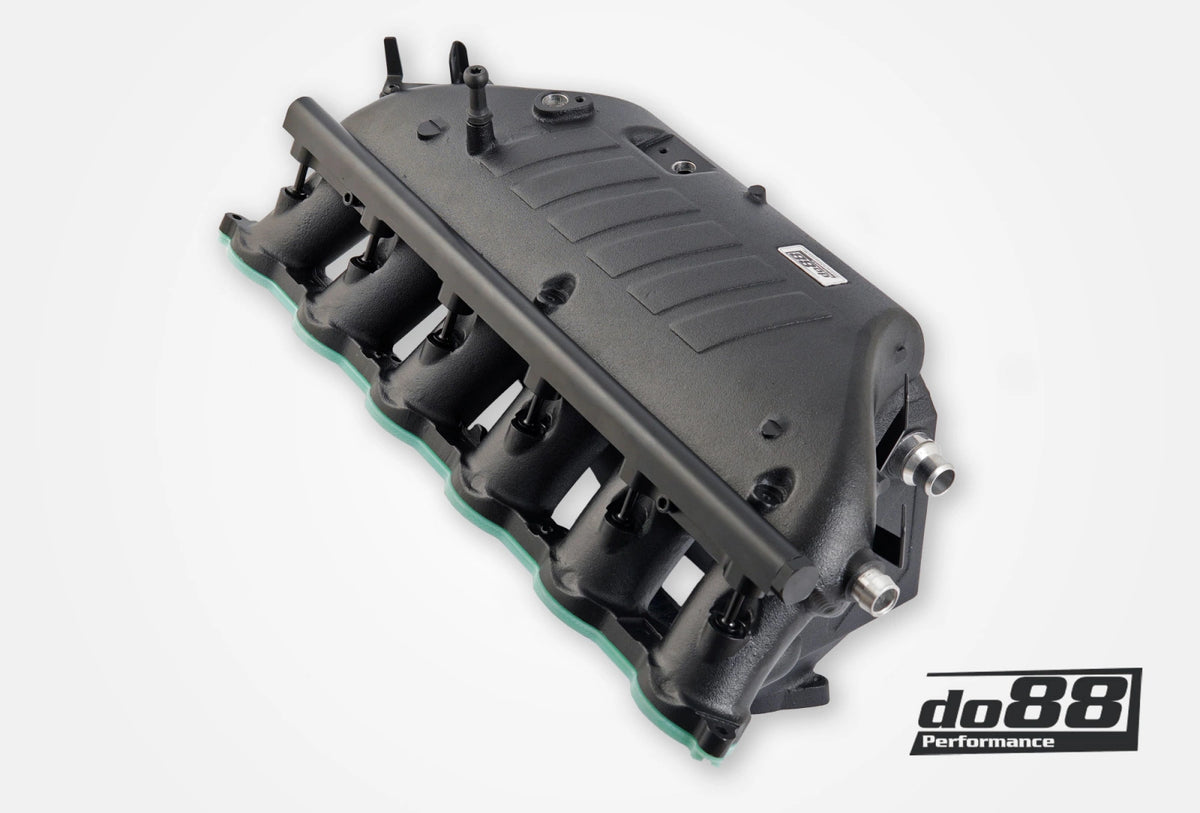

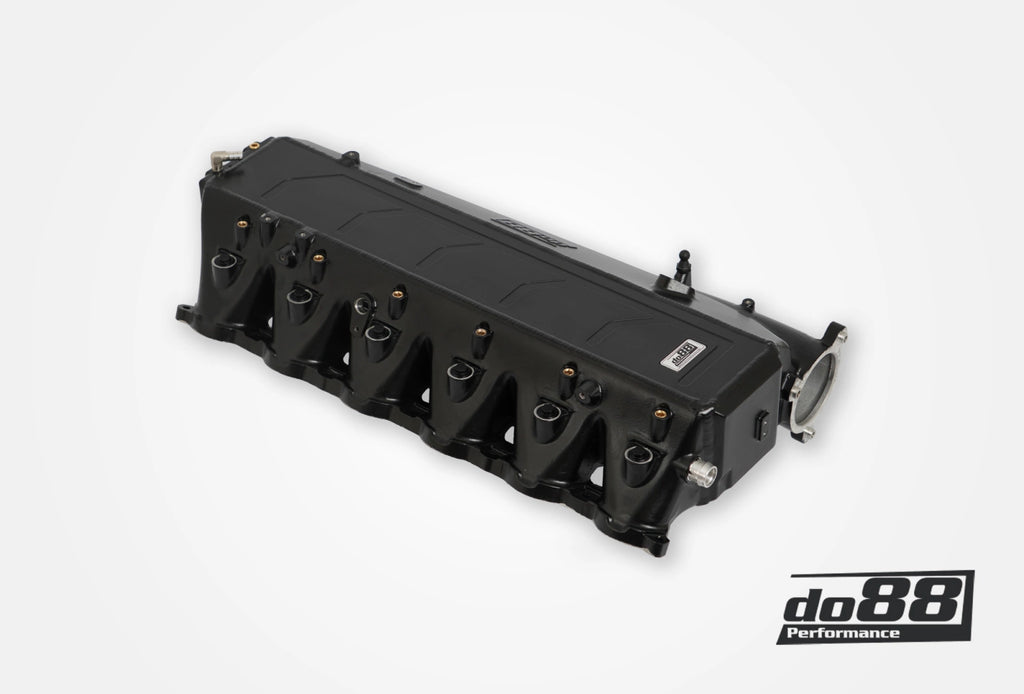

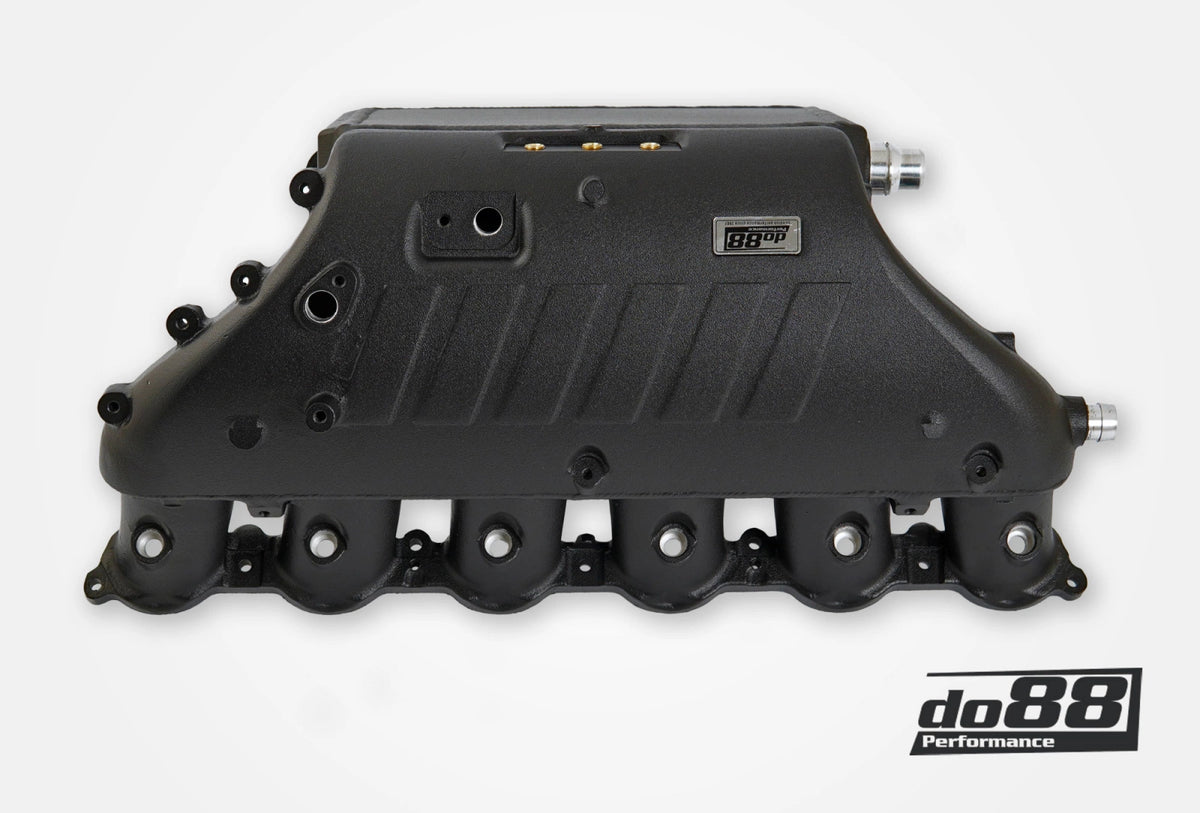

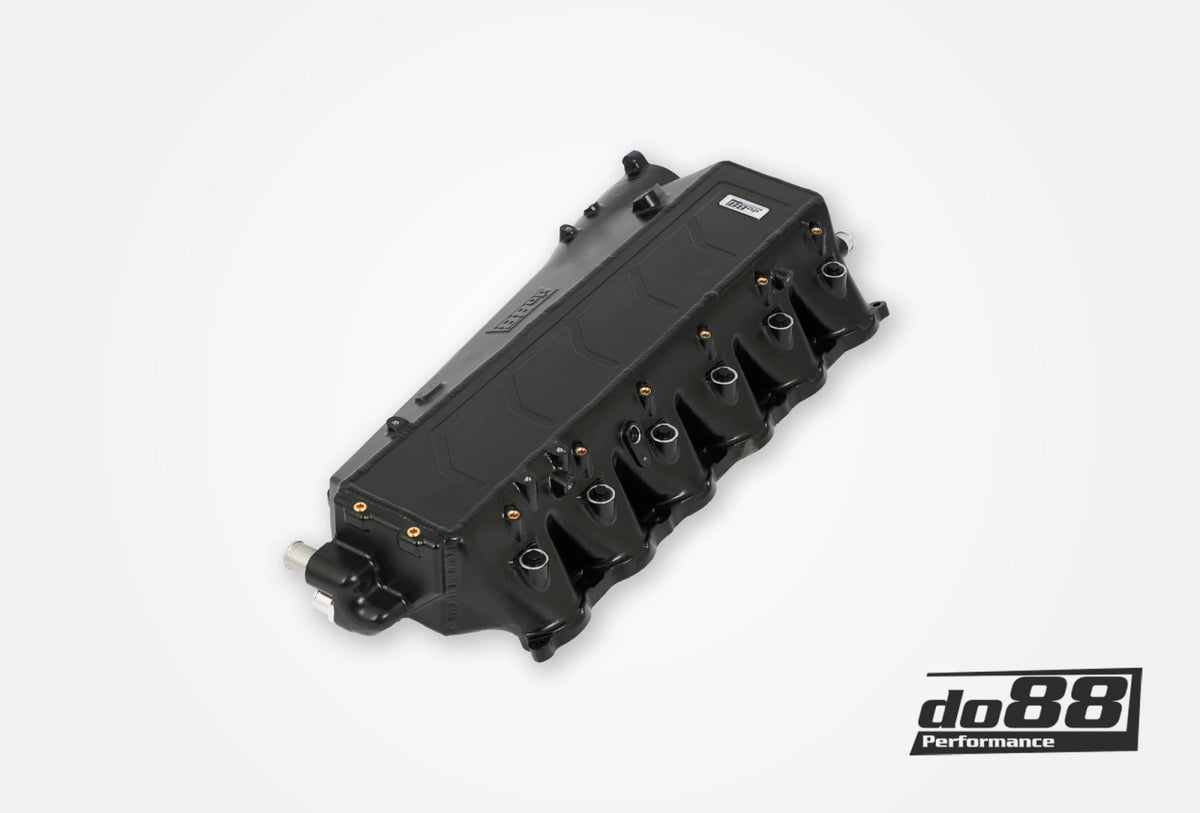

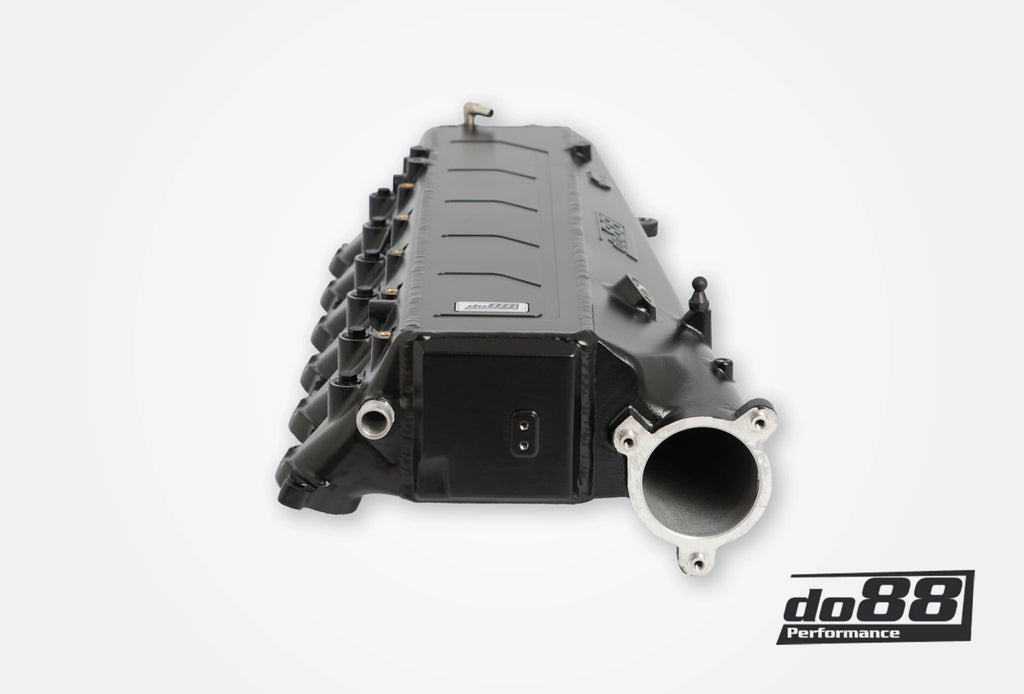

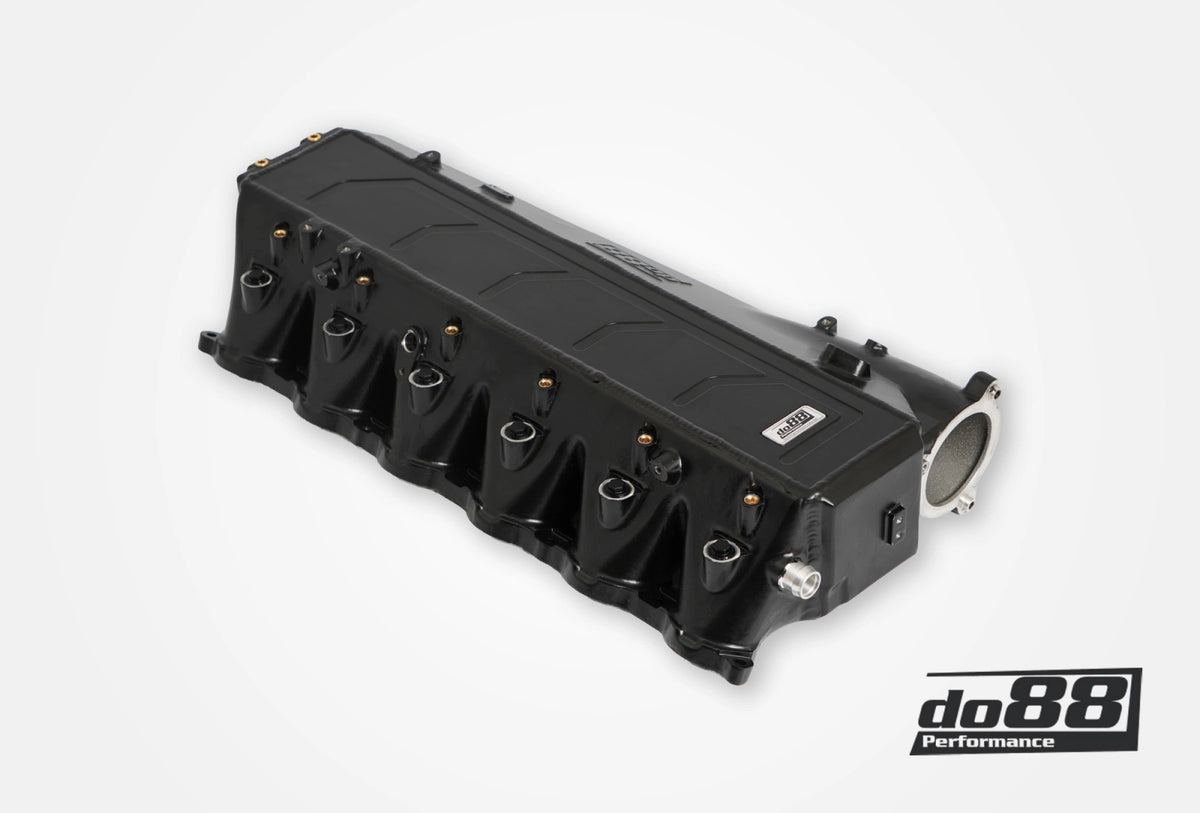

On both the B58 and S58, the charge air cooler core is integrated directly into the factory intake manifold — a compact, tube-and-fin design that's crimped into thermoplastic tanks. It works, but it's a limiting factor once you start pushing higher boost, ethanol blends, or sustained track use: airflow is restricted, heat soak sets in, and the factory plastic tanks are a known failure point under stress. The do88 Charge Cooler Manifold replaces the entire factory manifold with a CNC-machined aluminum unit built around a much larger Bar & Plate intercooler core, solving both the flow and durability problems at the source.

SPECS

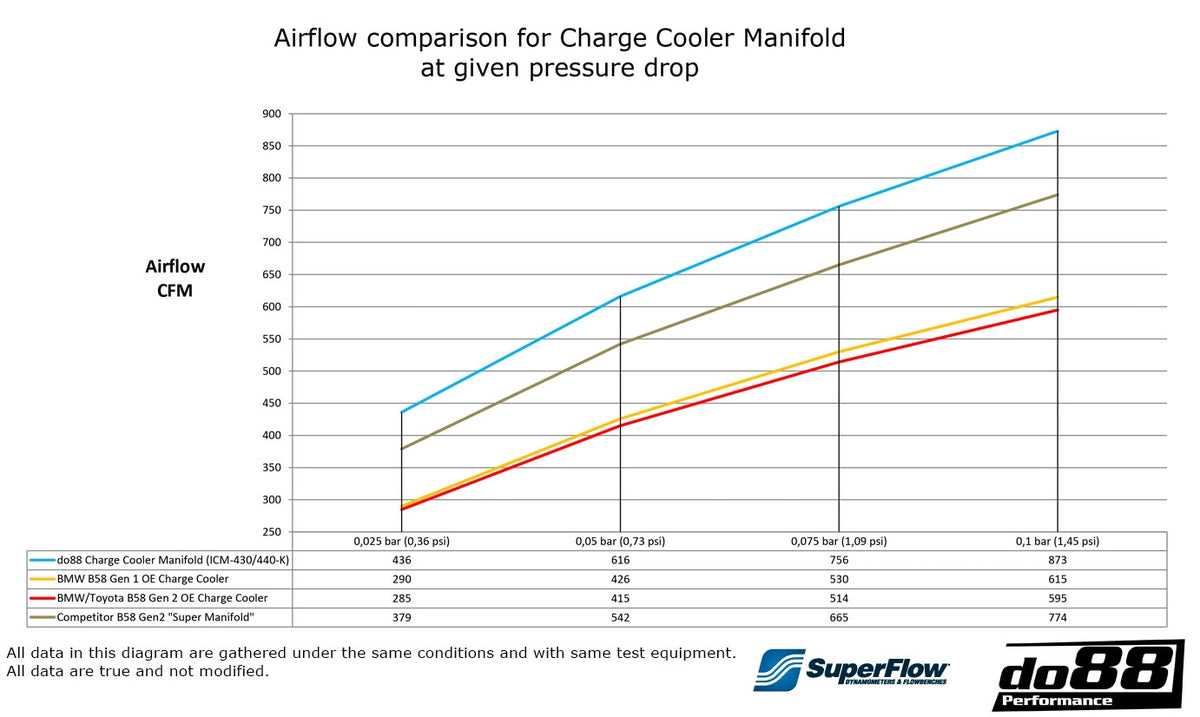

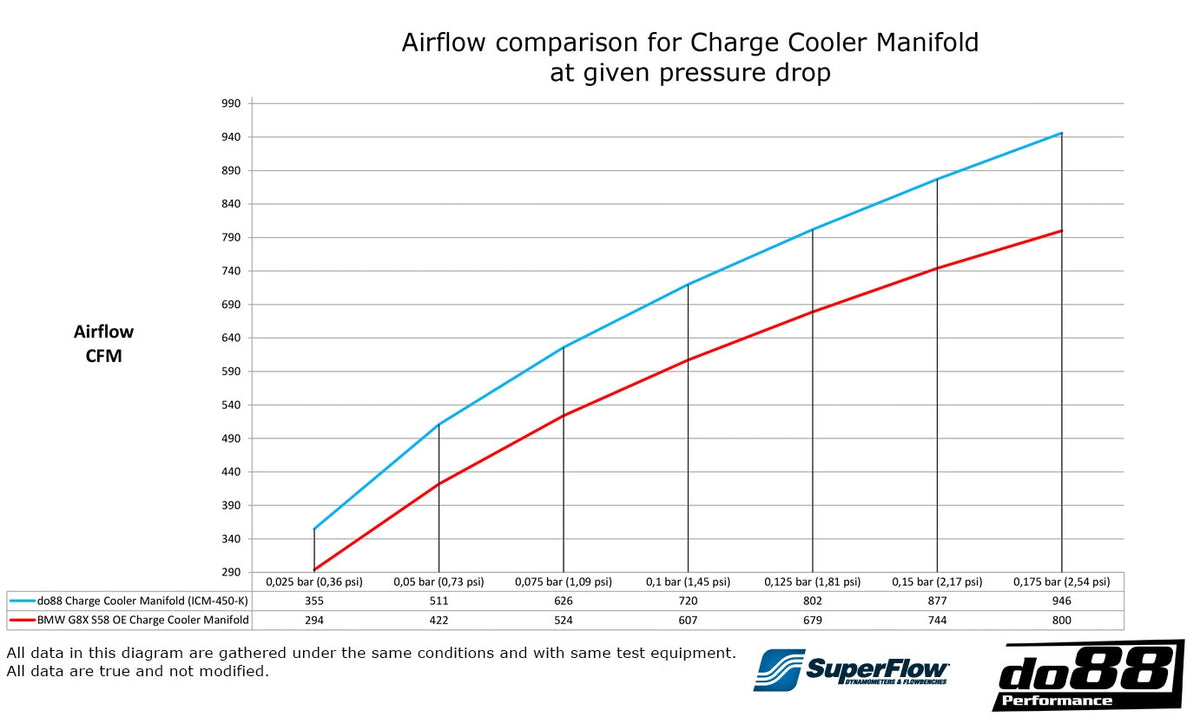

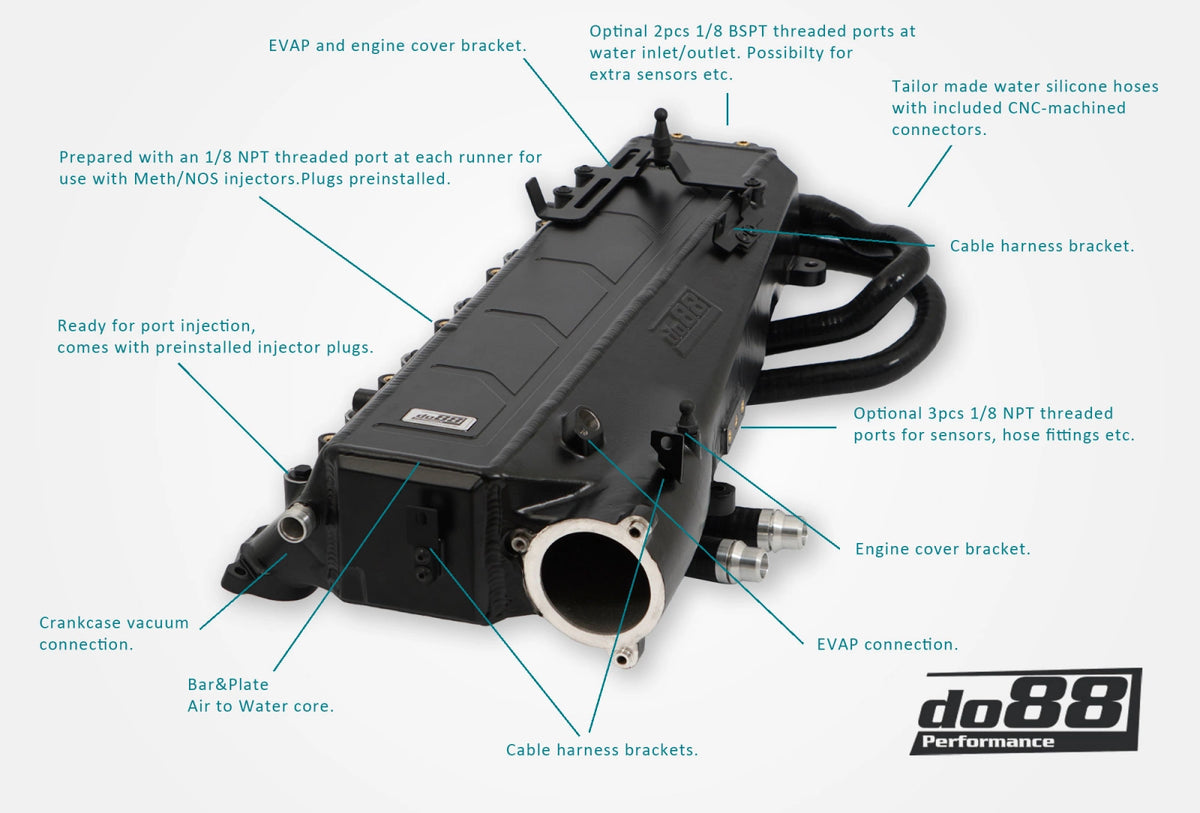

• Core: High-performance Bar & Plate air-to-water intercooler core — up to 62% larger than the factory core on the S58 version, with roughly 42% more airflow on the B58 Gen 1 version

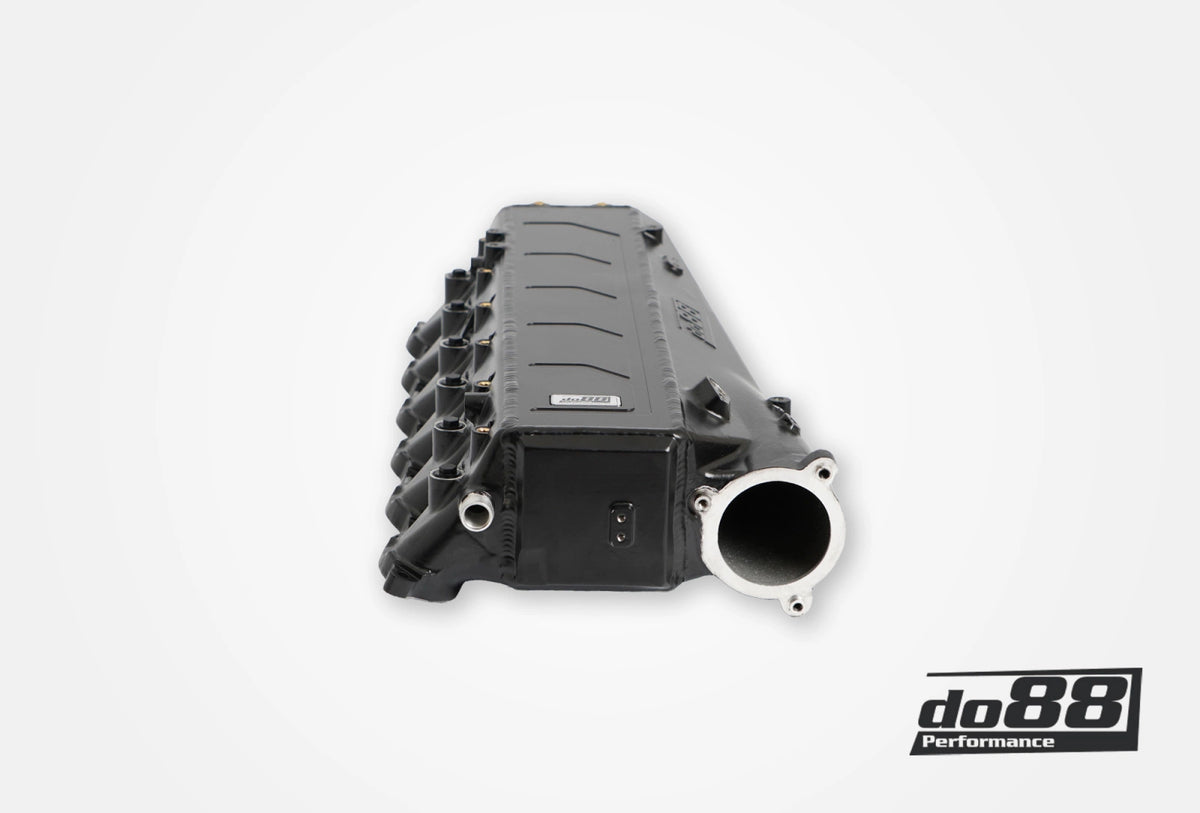

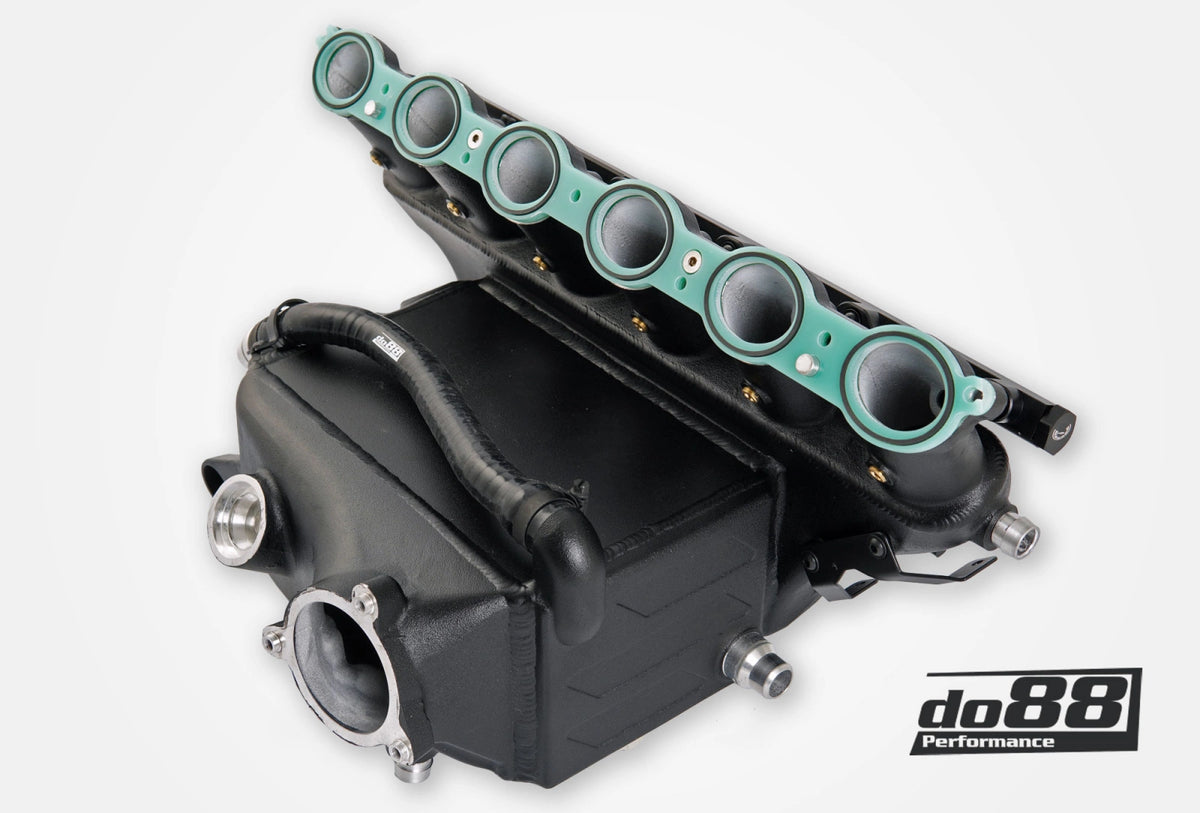

• Construction: Precision-cast/CNC-machined aluminum manifold (replacing the OE plastic manifold), capable of handling significantly higher boost pressures

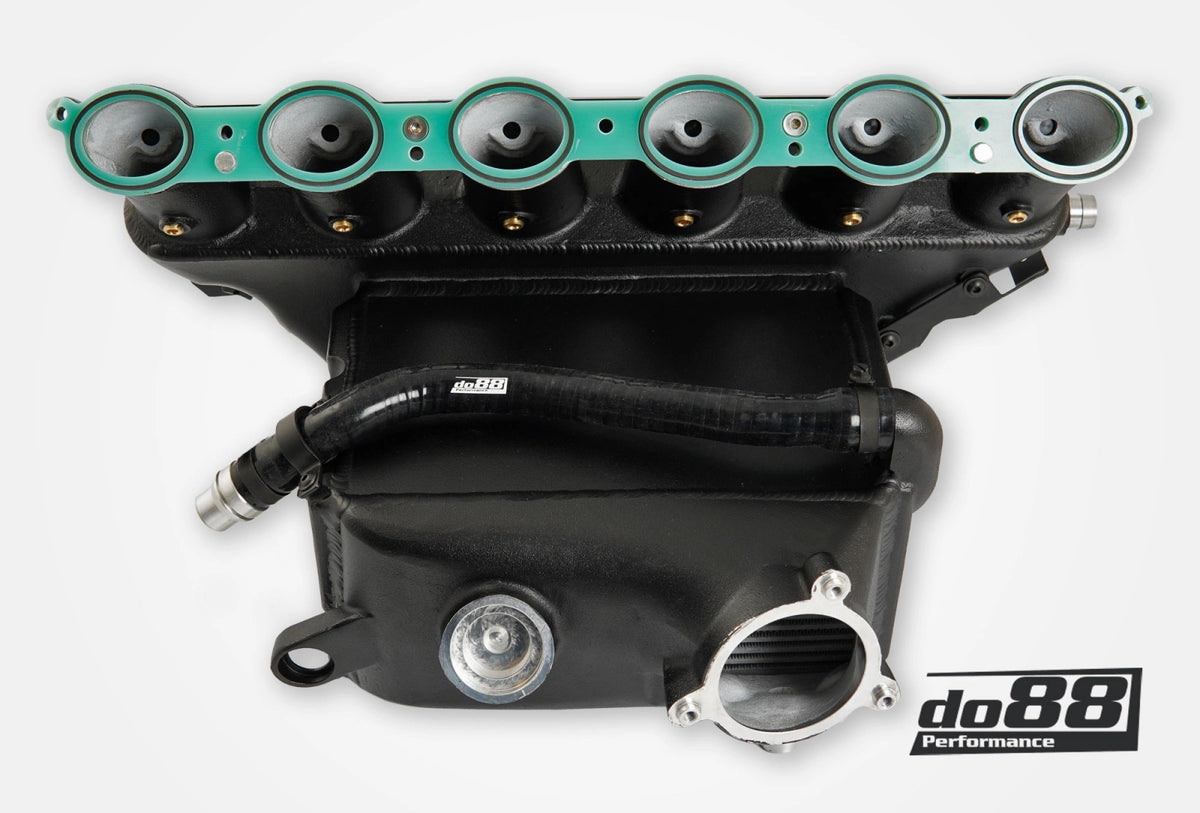

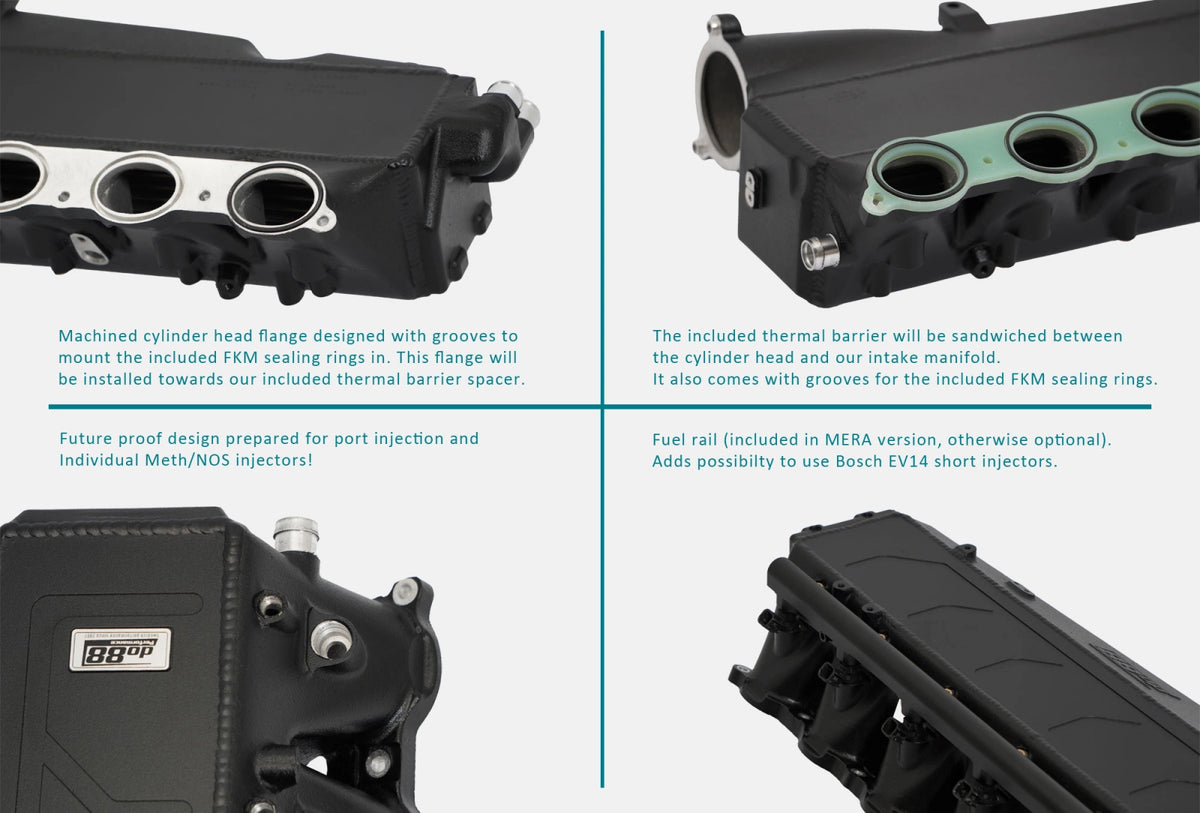

• Thermal barrier spacer: Included on the B58 Gen 2/Supra and S58 versions — insulates the aluminum manifold from cylinder-head heat soak, sealed with custom FKM-silicone O-rings in precision-machined grooves for a more reliable seal than typical gasket-based approaches

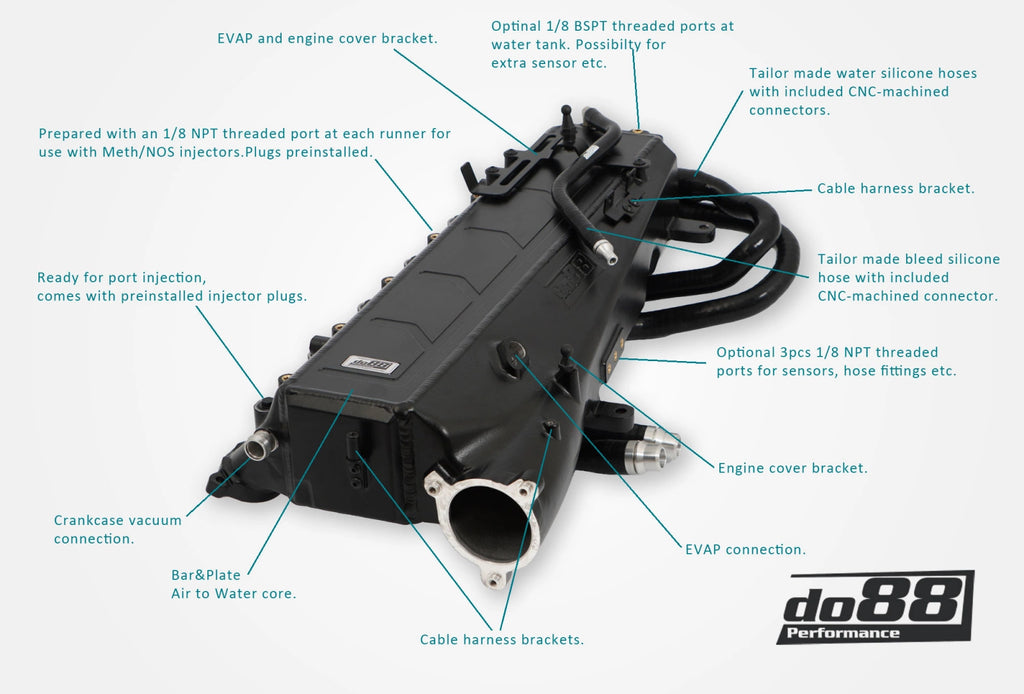

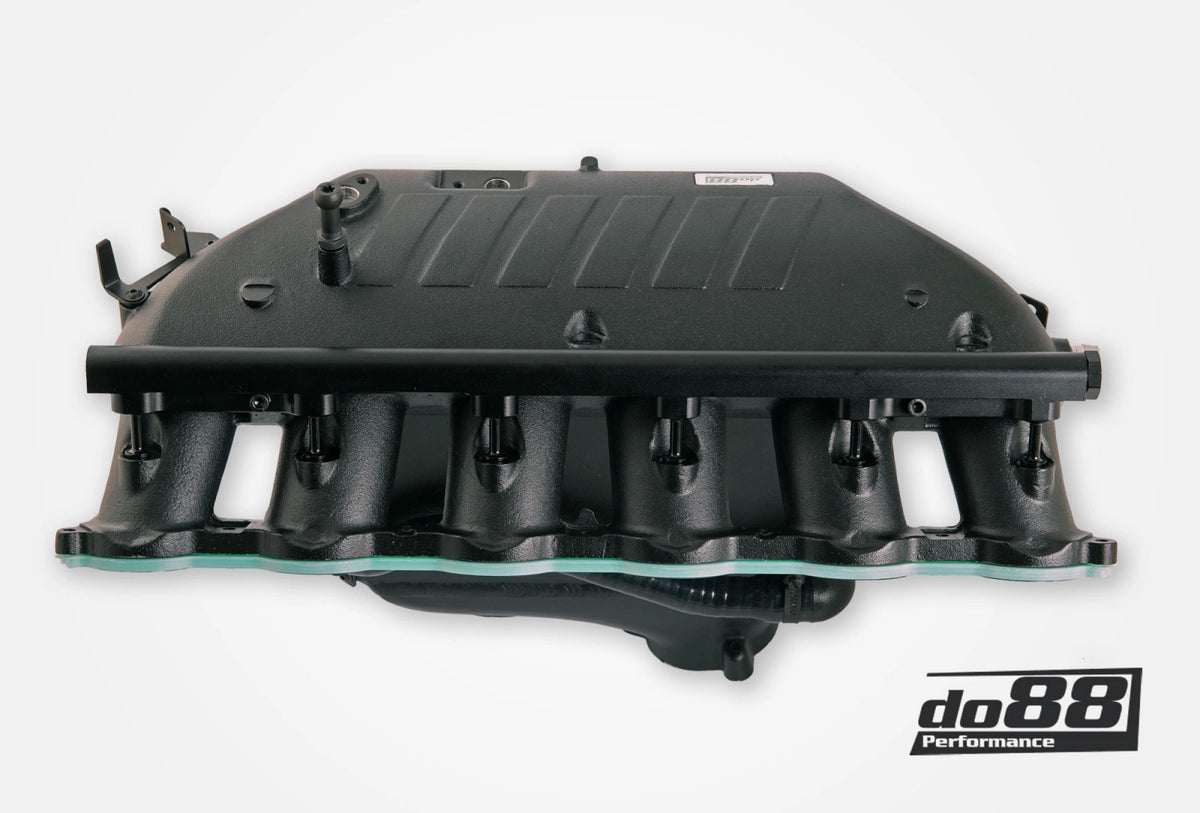

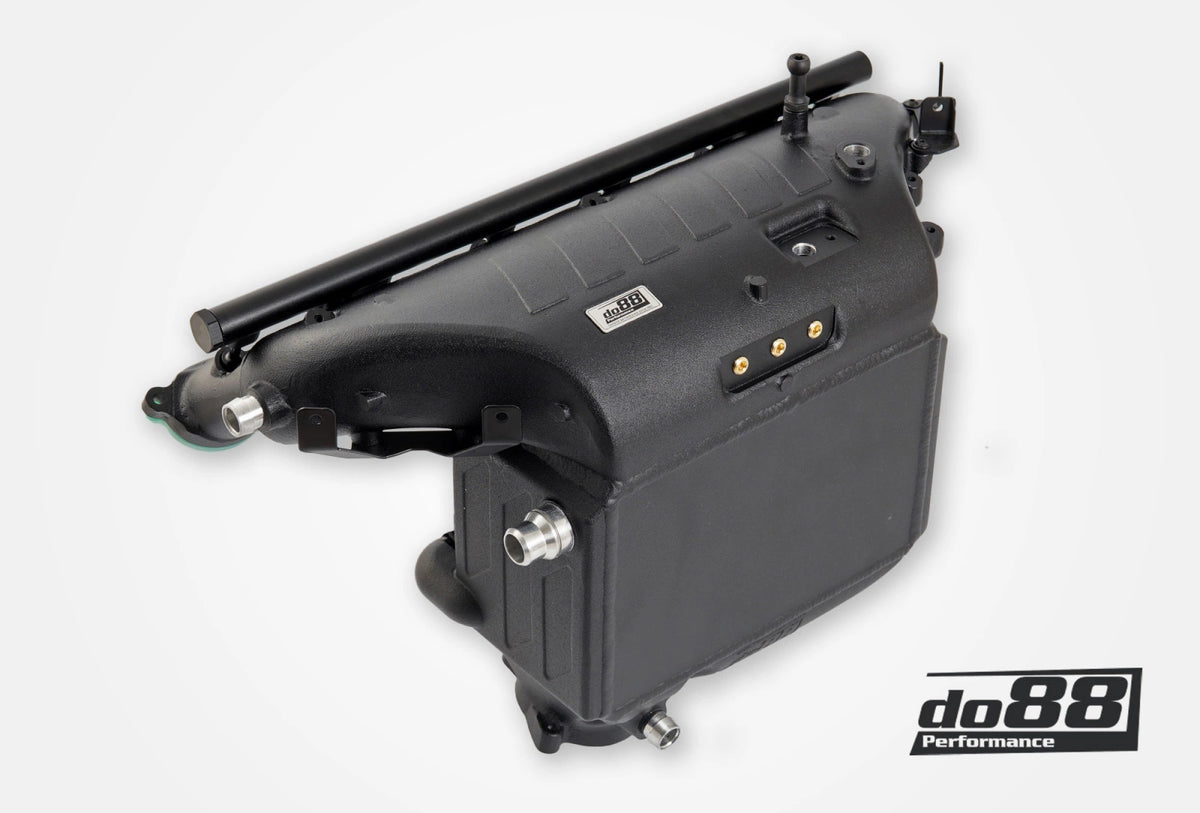

• Auxiliary fueling ready: Outlet tank is pre-configured for auxiliary port fuel injection (compatible with Injector Dynamics ID1050x-34-14 or Bosch EV14-short injectors on the S58 version); injector blanking plugs included if you don't run port injection

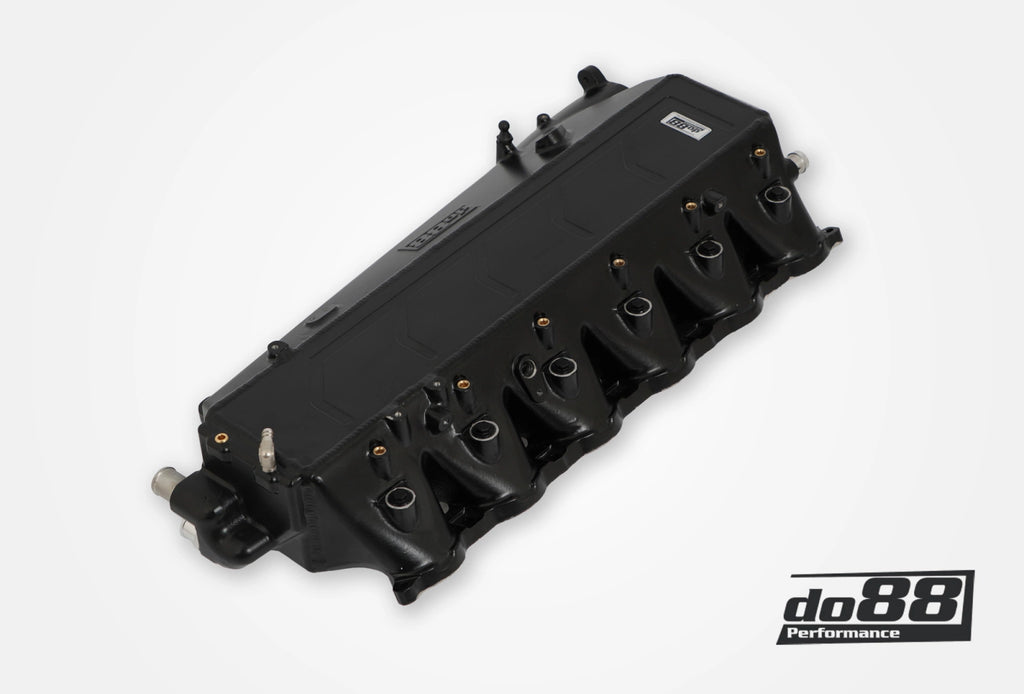

• Nitrous/meth ports: Each cylinder runner includes a 1/8" NPT port for nitrous or methanol injection, with sealing plugs included if unused

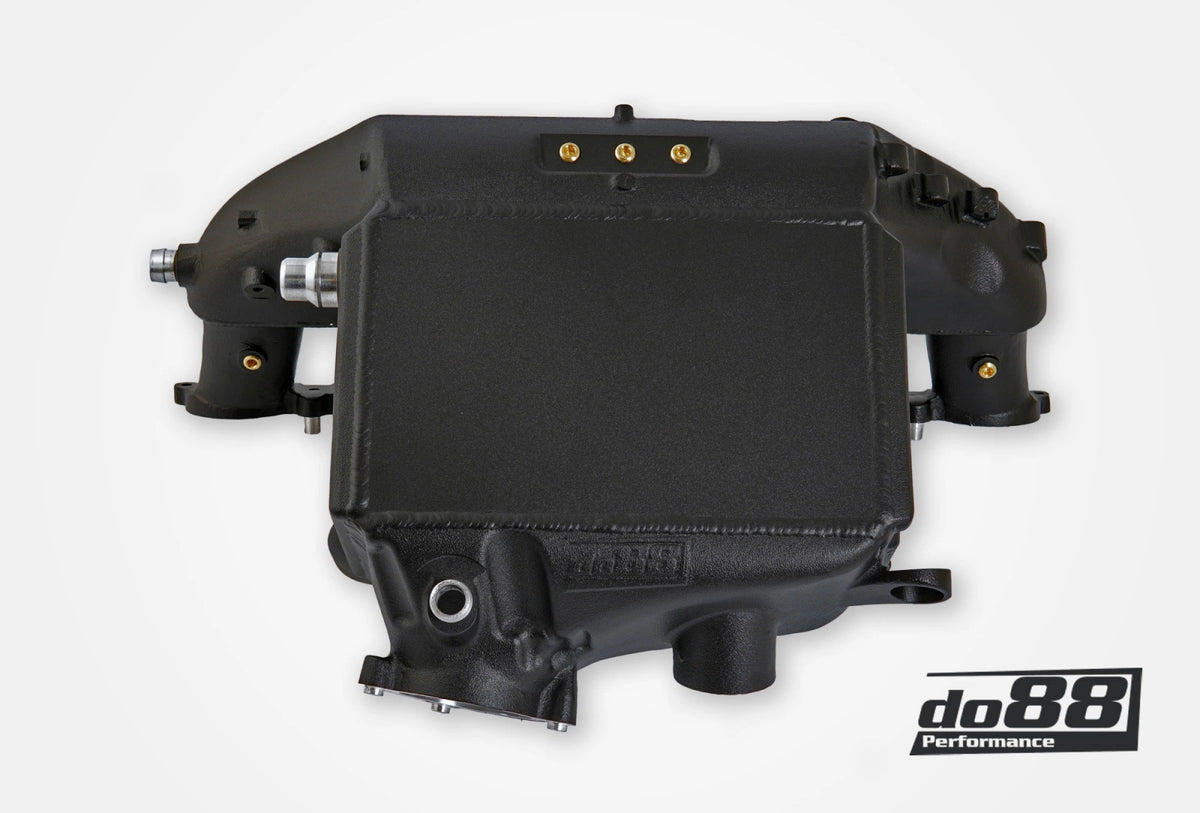

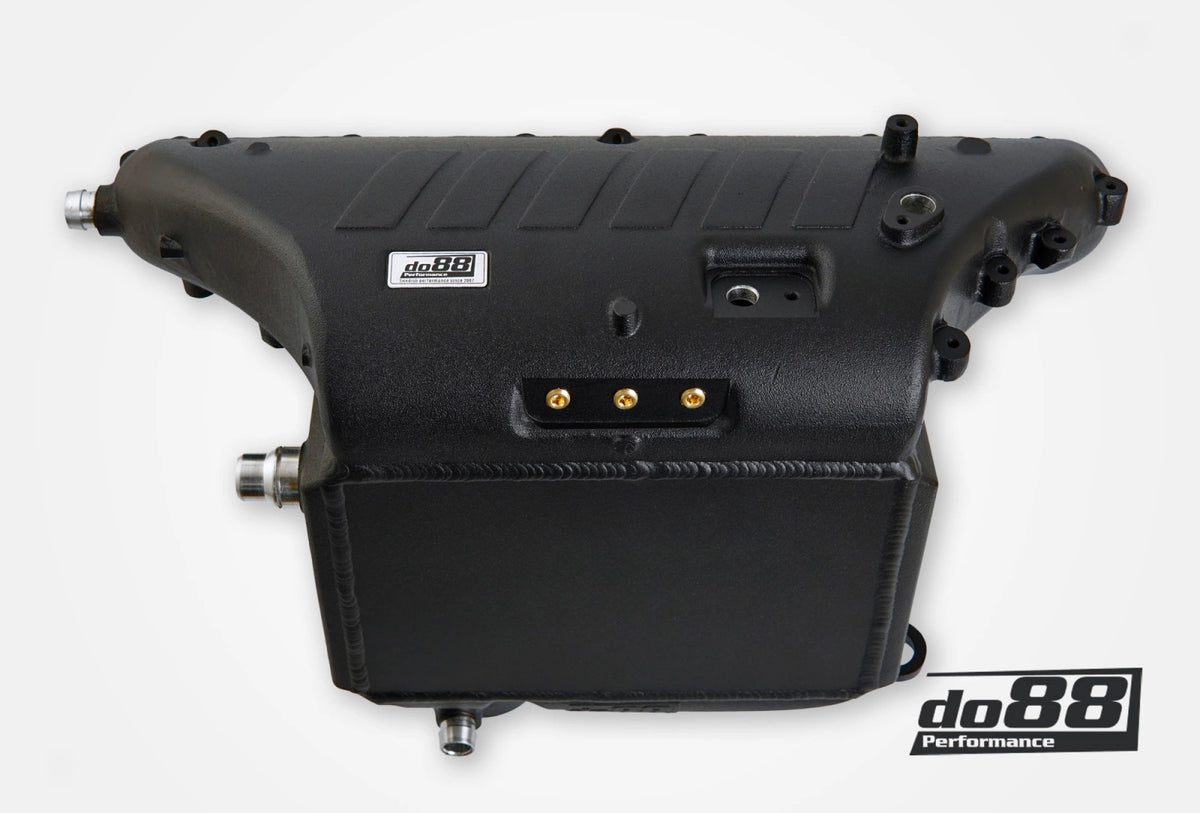

• Extra ports: A 3-port pad cast into the manifold outlet tank for additional sensors or as a vacuum source (S58 version)

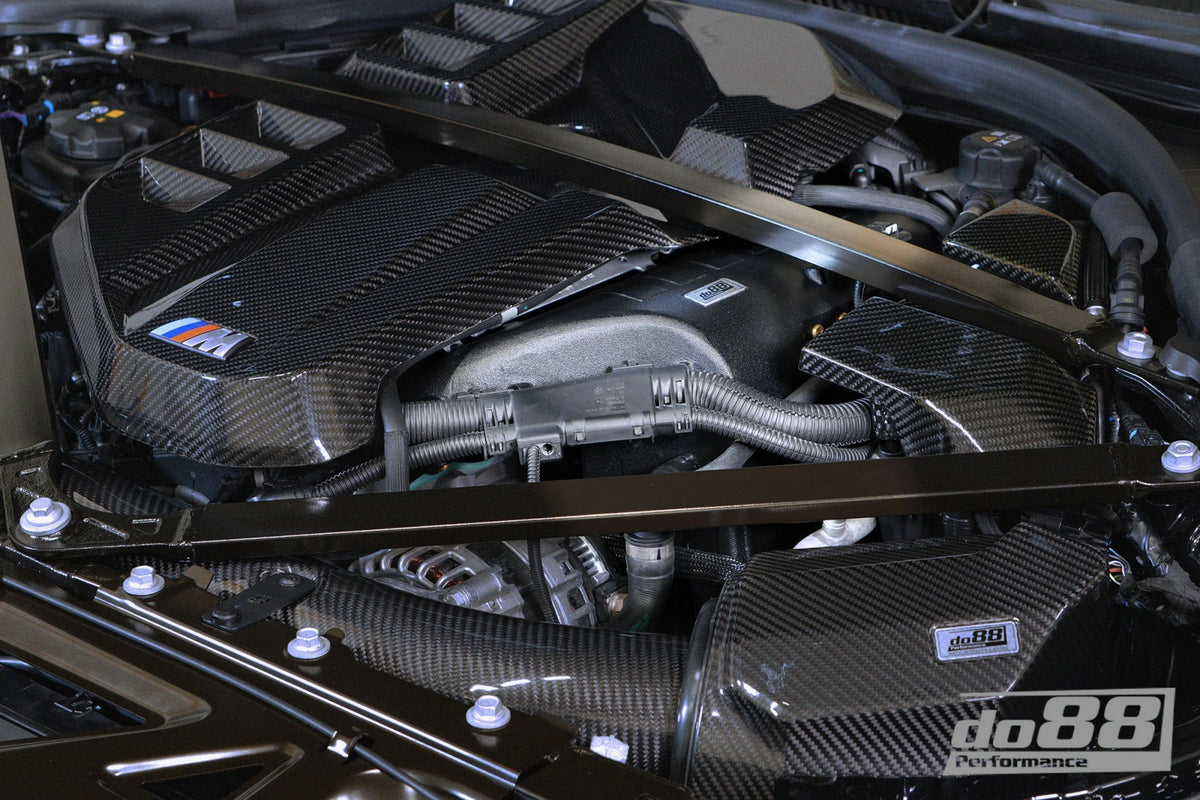

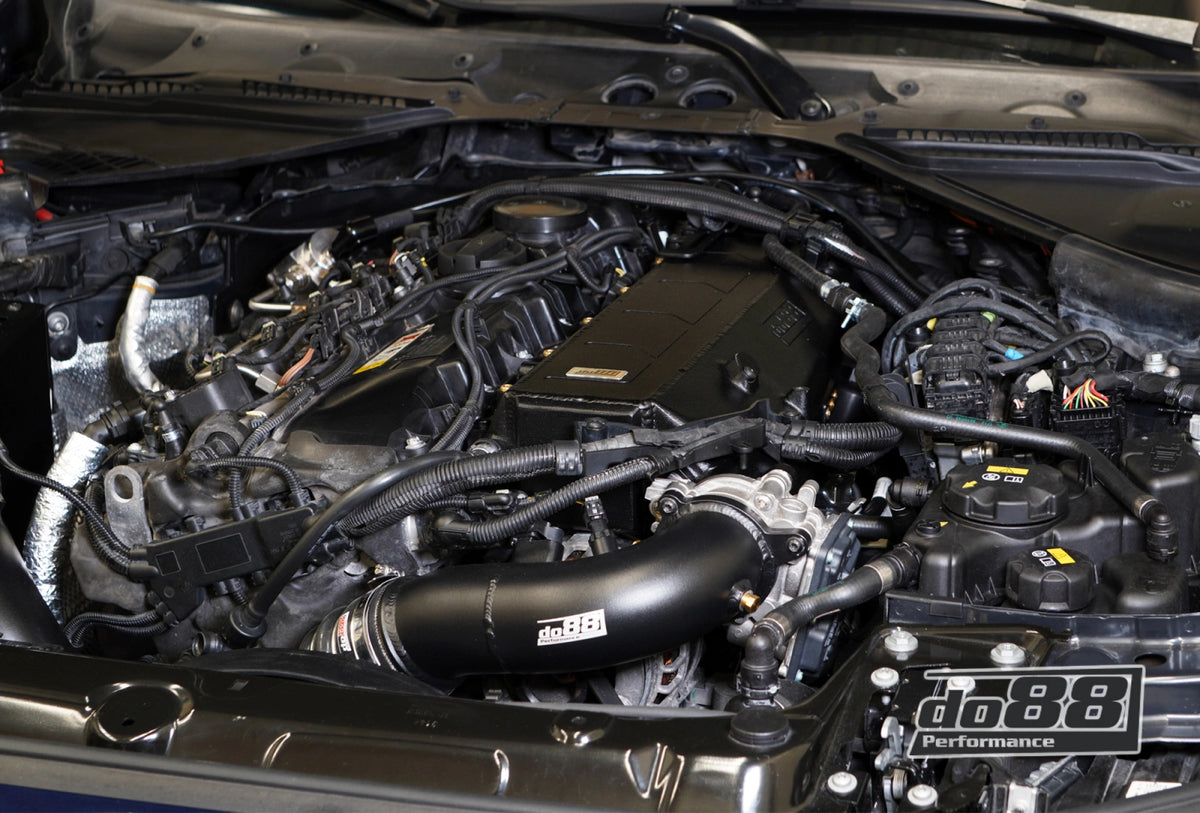

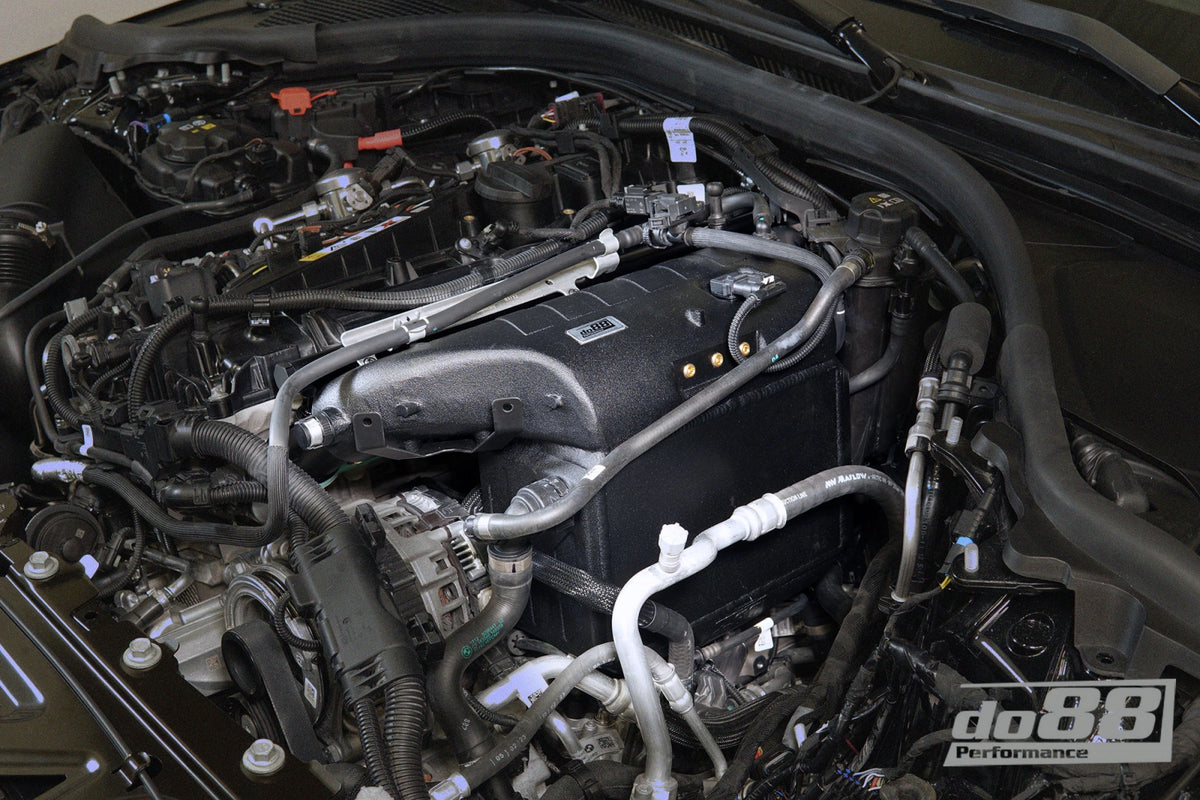

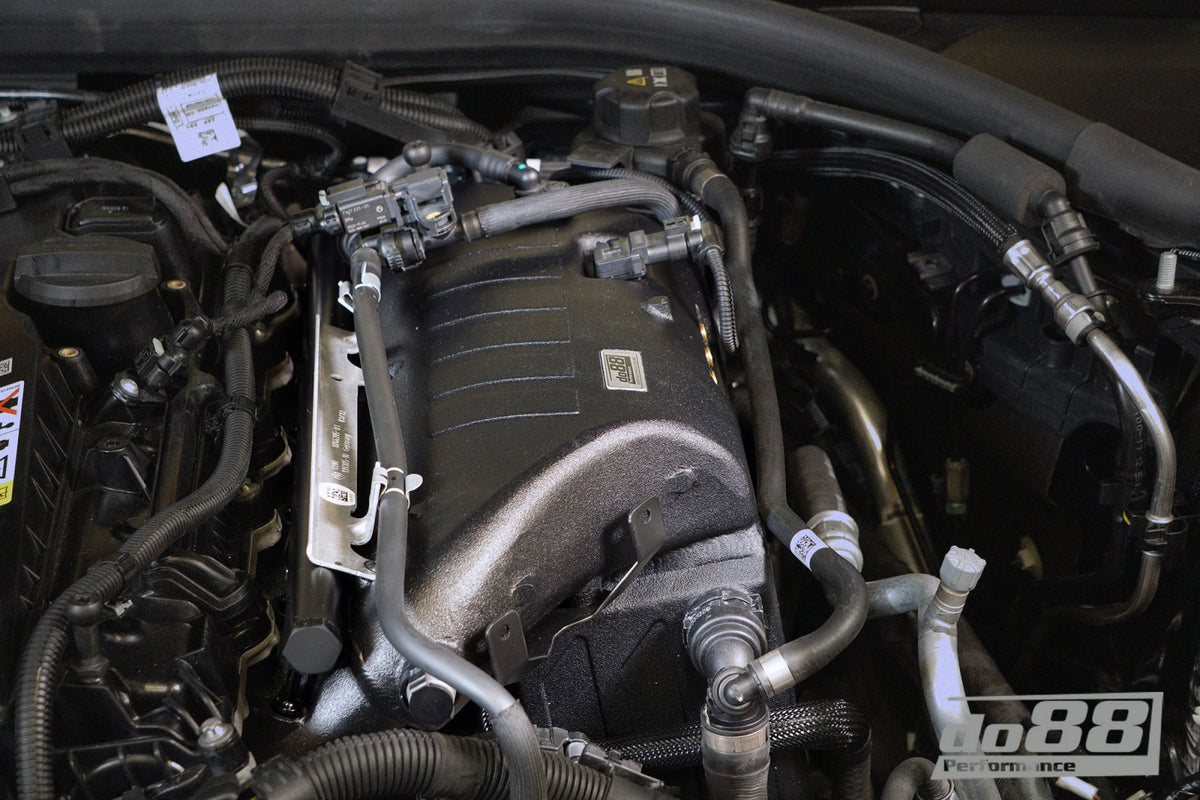

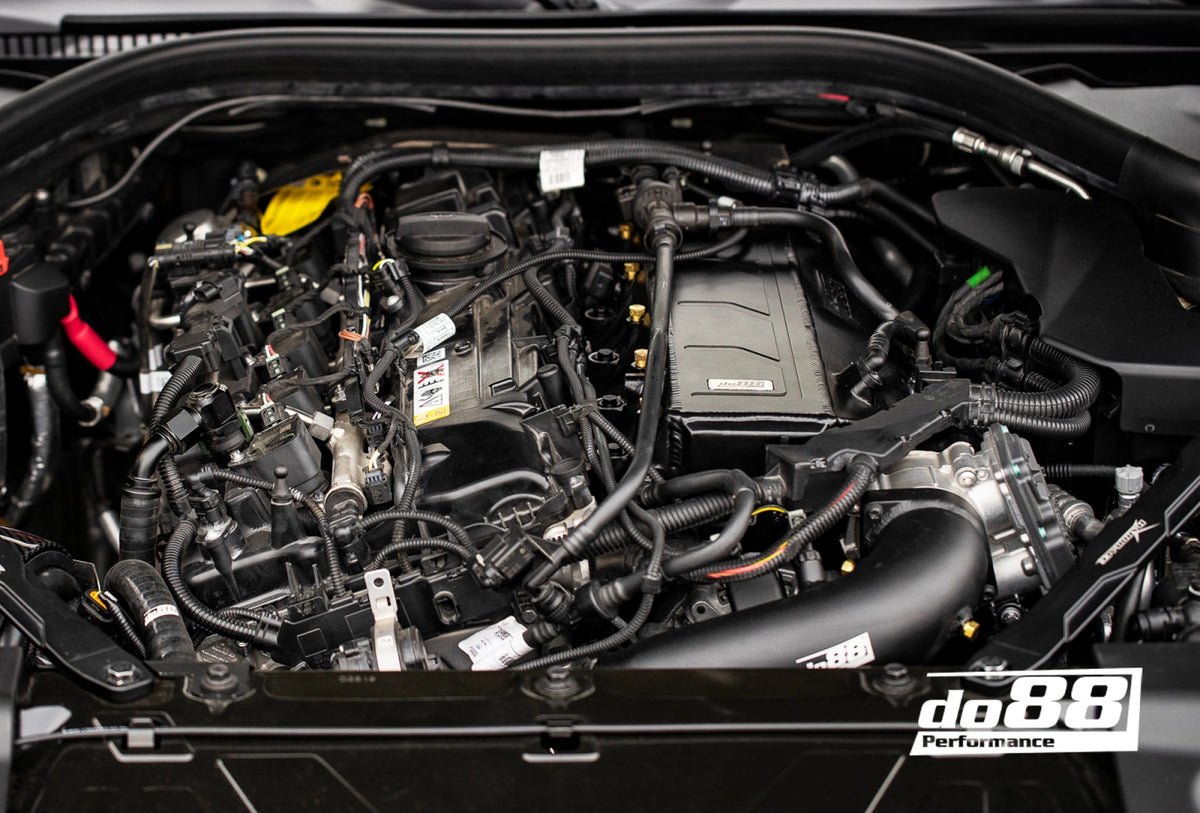

• OEM compatibility: Sits under the stock engine cover; standard (non-MERA) version pairs with the factory downpipe/charge pipes, preserving a clean, OEM-style engine bay appearance

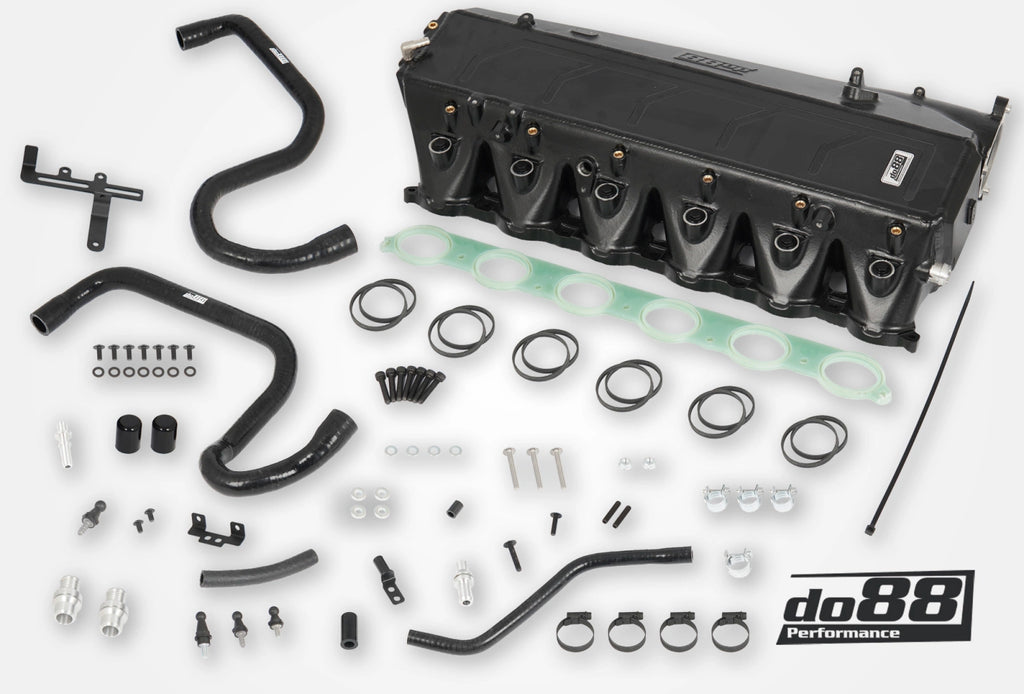

PARTS INCLUDED

• 1x do88 charge cooler manifold (platform-specific)
• Thermal barrier spacer with FKM O-rings (B58 Gen 2/Supra and S58 versions)
• Injector blanking plugs and NPT sealing plugs (where applicable)
• Mounting hardware and gaskets

TECH RESOURCES

• This is a full manifold replacement — the factory intake manifold, including its integrated charge cooler core, is removed and replaced as a unit.
• A "MERA" all-in-one version is available for the B58 that bundles the fuel rail and sealing plugs — B58 Gen 1 (F-Series) or B58 Gen 2 (G-Series)/Supra; if you already have the standard kit, MERA-specific accessories are sold separately.
• Professional installation is strongly recommended given the complexity of this component and its integration with fueling, cooling, and vacuum systems.
• Pairs with the do88 Front Intercooler Radiator (heat exchanger) for a complete charge-air cooling upgrade, though it will also work with the factory heat exchanger.
• ICM-440-K installation instructions (B58 Gen 1) »
• ICM-430-K installation instructions (B58 Gen 2 / Supra) »
• ICM-450-K installation instructions (S58 G8X) »

PART NUMBER

• ICM-440-K (B58 Gen 1 F-Series)
• ICM-430-K (B58 Gen 2 G-Series and Supra)
• ICM-450-K (S58 G8X)

VEHICLE APPLICATIONS

This is a significant, complex upgrade — always confirm exact chassis/engine generation and discuss auxiliary fueling plans with your tuner before ordering.
