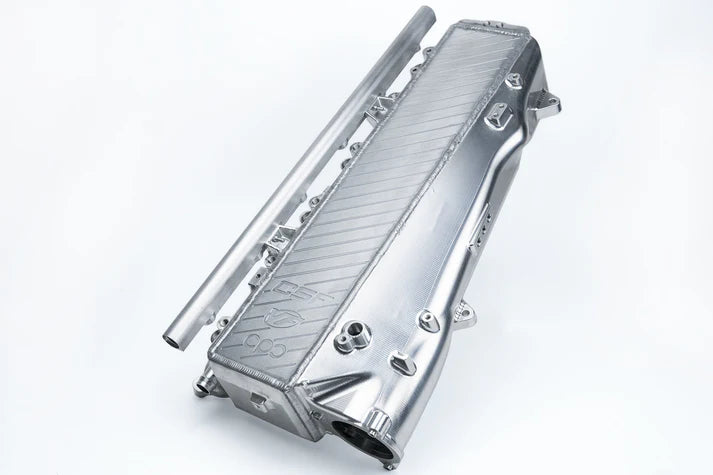

CSF Charge Air Cooler Manifold - BMW B58 G-Series Toyota Supra A90/A91

OVERVIEW

CSF's Charge Air Cooler Manifold for the B58-powered G-Series BMW and Toyota GR Supra doubles the water-cooling capacity of the OEM core (12 rows vs. OEM 6 rows) with significantly lower pressure drop, designed in SolidWorks using Computational Fluid Dynamics.

SPECS

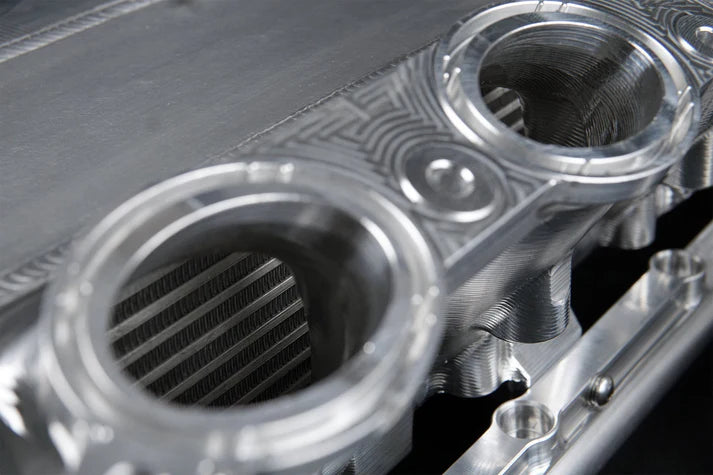

• High-performance, motorsports-grade bar/plate air-to-water intercooler core
• Double the capacity of the OEM core (12 rows of water cooling vs. OEM 6 rows)
• Significantly lower pressure drop across the core compared to OEM
• Designed in SolidWorks using Computational Fluid Dynamics (CFD)
• Integrated air divider in inlet tank evenly distributes airflow throughout the core
• Easy access to spin-off oil filter for quick oil changes — no need to uninstall manifold every oil change
• Counter-balanced design for optimized airflow
• Integrated sensor pad with three 1/8" NPT ports for additional parameters

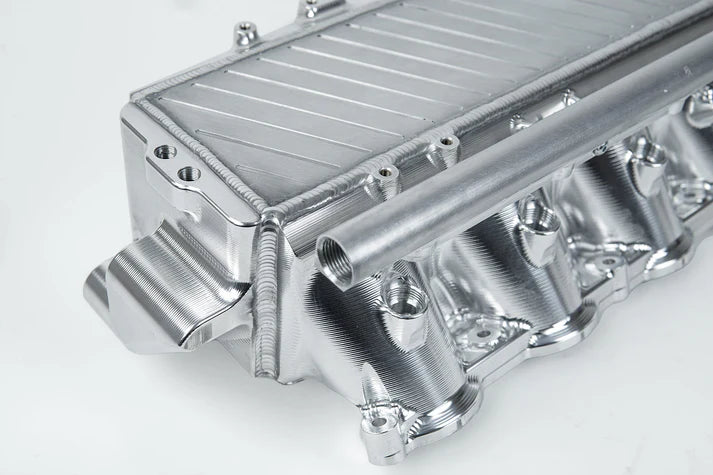

• Included optional fuel rail for top feed port injection; individual port injection bungs on each cylinder runner (comes pre-plugged)

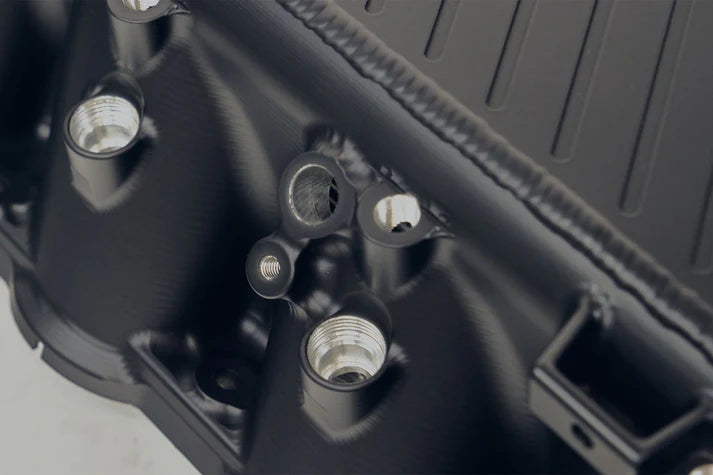

• Individual 1/8" NPT ports on the top of each cylinder runner for nitrous or meth injection

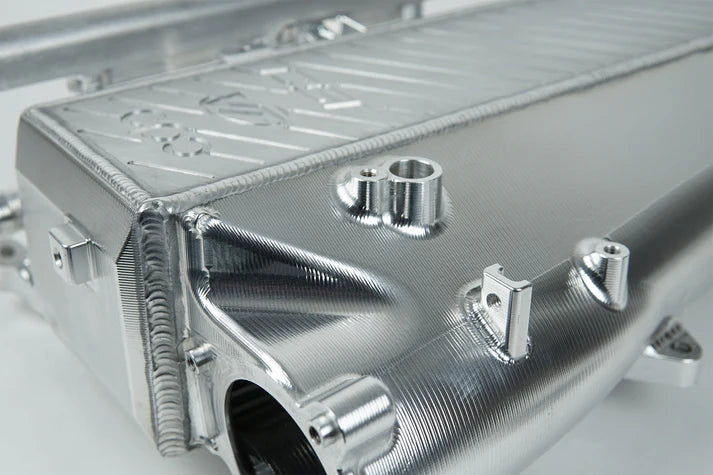

• Individual 1/8" NPT breather ports for both inlet/outlet water connections for easy air-bleeding
• Plug-and-play design, requiring no modifications to install
• Made by Custom Plenum Creations in Australia

PARTS INCLUDED

• 1x charge air cooler manifold (Raw or Thermal Dispersion Black per variant)
• Hardware and installation kit with picture diagrams containing 28 different parts

TECH RESOURCES

• Can be used with OEM or aftermarket engine covers (with OEM connections)
• CSF pressure tests each #8200/#8200B manifold at 60-70 PSI for 2-3 minutes during Quality Control
• Not designed to operate above 60 PSI — operation above this pressure voids the CSF Limited Warranty
• Stepping up to competition use? See CSF's Race X Charge Air Cooler Manifold (8400) (25% larger) or the Air-to-Air Competition Manifold (8401). Pair with the CSF B58 Heat Exchanger (8154) and cooling suite.

PART NUMBER

• Raw — 8200
• Thermal Dispersion Black — 8200B
