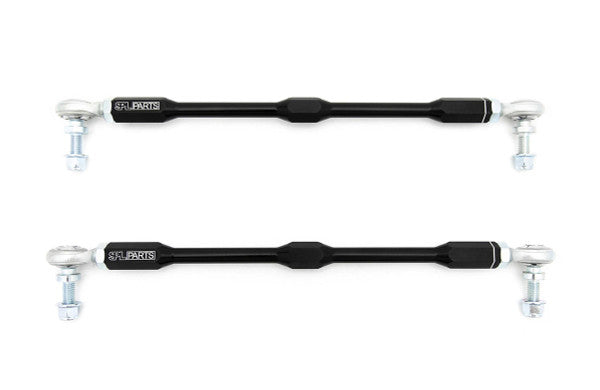

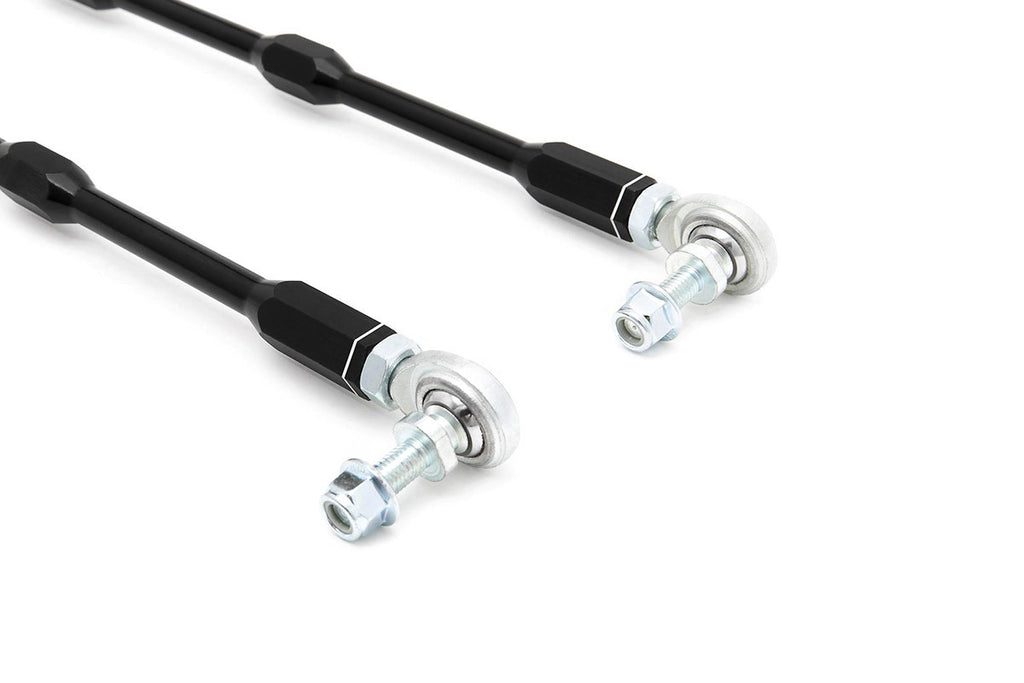

SPL Parts Front Adjustable Sway Bar Endlinks - Toyota GR Supra (A90/A91) & BMW Z4 (G29)

OVERVIEW

SPL Parts PRO Front Endlinks (FE) for the Toyota GR Supra and BMW Z4 feature massive Teflon-lined FK 1/2" bearings to provide the highest load capacity for use with stiffer aftermarket sway bars. Custom heat-treated chromoly high-misalignment studs connect to the sway bar and offer extreme articulation capability (65°) to prevent binding when used with different adjustment holes on aftermarket bars.

Length-adjustable to eliminate sway bar preload from uneven spring settling or uneven ride heights after corner weighting. Black anodized 6061-T6 aluminum turnbuckles work with left- and right-hand threaded rod ends for simple, precise adjustment. Also one of SPL's recommended solutions for creating sway bar clearance with their front lower control arms.

SPECS

• Teflon-lined FK 1/2" spherical bearings for maximum load capacity
• Heat-treated chromoly high-misalignment studs — 65° articulation prevents binding
• Length-adjustable to remove sway bar preload
• Black anodized 6061-T6 aluminum turnbuckles with left/right-hand threaded rod ends
• Designed for use with stiffer aftermarket sway bars
• Suitable for street or race applications
• Sold as a pair; made in the USA

PARTS INCLUDED

• 2x SPL adjustable front sway bar endlinks with chromoly studs and hardware

TECH RESOURCES

• Note if running aftermarket coilovers: if you have replaced the OEM shocks with aftermarket shocks or coilovers, the mounting location may have moved. SPL cannot confirm fitment with aftermarket shocks and coilovers — measure the distance between the sway bar and shock mount before ordering
• Sway bar clearance: SPL recommends this part as a solution for creating clearance between the sway bar and their Front Lower Control Arms (FLCA G29)
• Also see our Rear Sway Bar Endlinks (RE G29) to complete the setup
• Set length to remove sway bar preload after corner-balancing
• Installation instructions (PDF): SPL FE G29 Install Guide

PART NUMBER

• SPL FE G29
