CSF Transmission Cooler - B58 BMW G-Series Toyota Supra A90/A91 8183

OVERVIEW

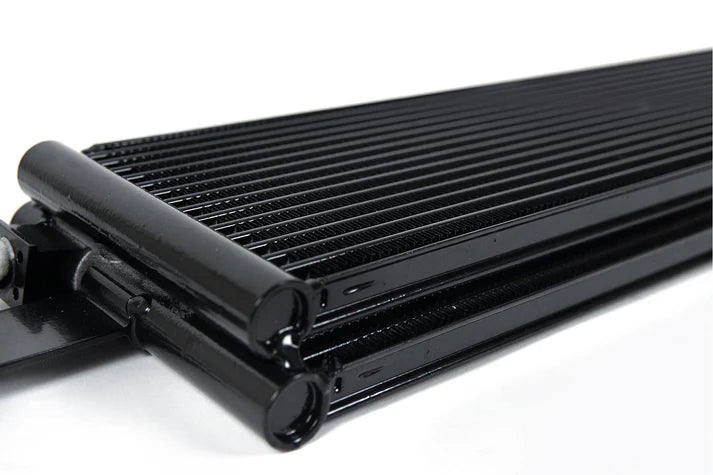

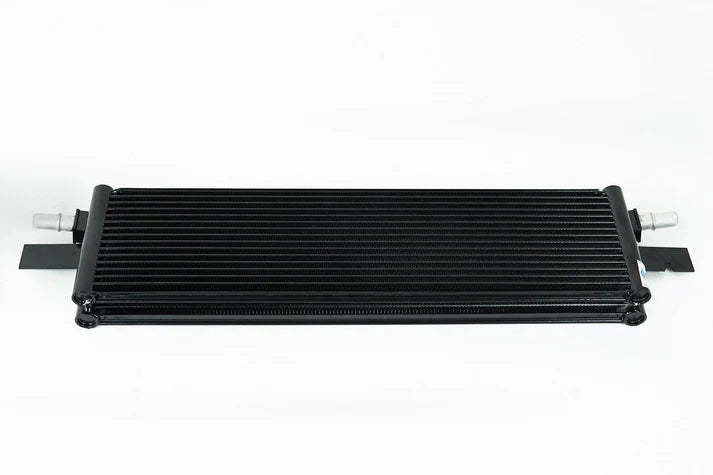

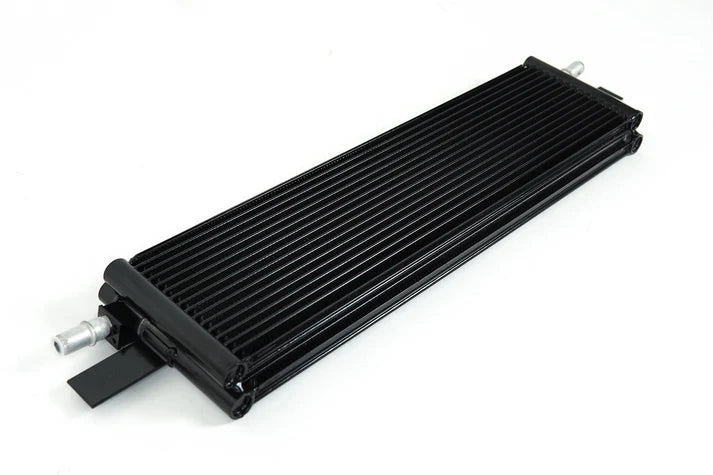

CSF's Transmission Cooler for the B58-powered G-Series BMW and Toyota GR Supra uses an innovative dual-core design (industry exclusive) for a significant increase in fluid capacity and core volume over the OEM single-core unit.

SPECS

• Innovative dual-core design (industry exclusive) vs. OEM single core — 240% increase in core volume, 130% increase in fluid capacity compared to OEM (CSF 550ml vs. OEM 240ml)
• 5.4mm tall multi-louvered fin vs. OEM 7mm; two 16mm stacked cores = 32mm core width (44mm overall width) vs. OEM 15mm core width
• Rear cooler: 15 rows vs. OEM 12 rows; front cooler: additional 12 rows
• Made with CSF's AC condenser technology using a 1-row super-high-pressure 16mm 9-channel microtube for optimal oil flow and maximum surface area contact
• 129mm overall height vs. OEM 125mm — maximum performance without increasing overall surface area or blocking airflow
• Utilizes OEM top/bottom rubber seals for optimal airflow
• OEM-style "Quick Connect" inlet/outlet connections
• 2-year limited warranty
• Ideal for road racing, drag racing, and vehicles with increased performance and/or transmission tuning

PARTS INCLUDED

• 1x dual-core transmission cooler

TECH RESOURCES

• Drop-in fit requires no modifications to install
• Pairs with the CSF B58 Heat Exchanger (8154) — which includes the transmission-cooler mounting kit — or runs with the OEM cooling system. Complete the suite with the Auxiliary Radiator (8179) and Radiator (7226).

PART NUMBER

• 8183

VEHICLE APPLICATIONS
